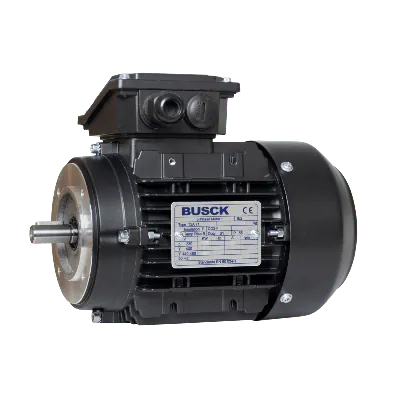

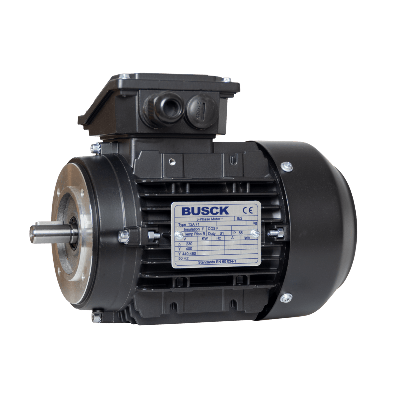

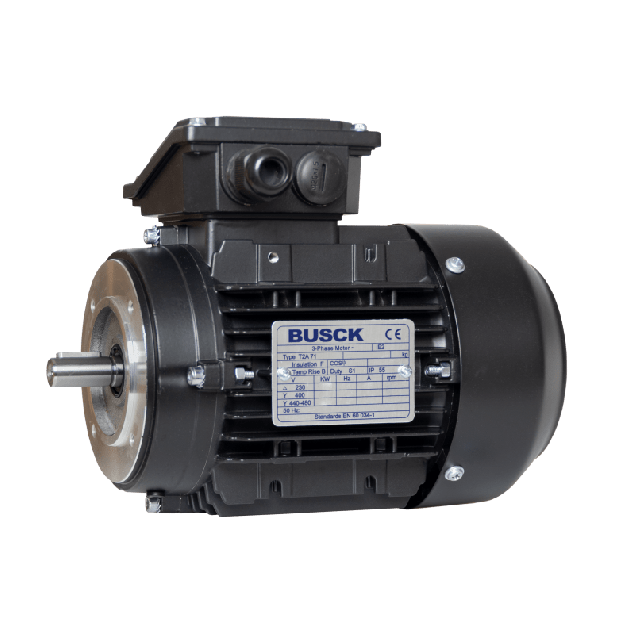

Busck AC motor T2A71A-2A22, 0.37kW, 2840RPM, 230/400V, 50Hz, ATEX 22, aluminium

T2A71A-2A22

The Busck AC Motor T2A71A-2A22 is a 3-phase electric motor designed for use in ATEX Zone 22 environments. This model delivers a rated output of 0.37 kW and operates at a rated speed of 2800 RPM. It features a shaft diameter of Ø14 mm and supports mounting type B14. Built with a durable aluminium housing, the motor complies with the IEC size 71 and follows the IE2 efficiency standard. It includes TEFC cooling for enclosed operation and has an IP65 classification for dust and water ingress protection. The voltage connection is 230/400V, 50Hz. This unit is ATEX certified for Zone 2-22 applications and is equipped with 2 poles for high-speed operation. The bolt circle diameter (BCD) is 85 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 65

Model

T2A71A-2A22

Speed (RPM)

2840

Rated output (kW)

0.37

Efficiency (% FL)

71.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.57/0.90

Nominal torque (Nm)

1.24

Start current ratio (IA/IN)

5.1

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP65 rating: The motor boasts an IP65 rating, providing protection against dust and water ingress, ensuring reliable operation in challenging conditions.
ATEX 22 certified: Verifies motor compliance with safety standards, meeting ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 requirements.
0.37kW output power: The motor delivers a power output of 0.37kW.
2840RPM speed: With a speed of 2840 revolutions per minute.
230/400V voltage rating: The motor operates at 230/400V voltage, making it compatible with standard industrial power supplies.
B14 flange: The B14 flange design ensures easy installation and integration into existing equipment or systems.
IE2 efficiency: The motor complies with IE2 efficiency standards, promoting energy savings.

Specifications:
