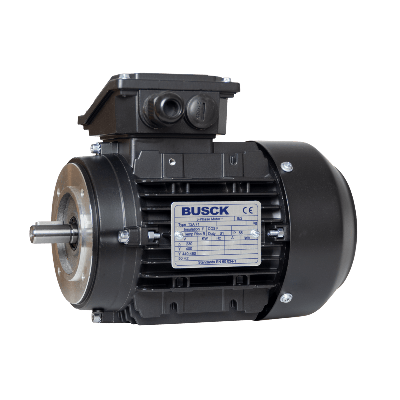

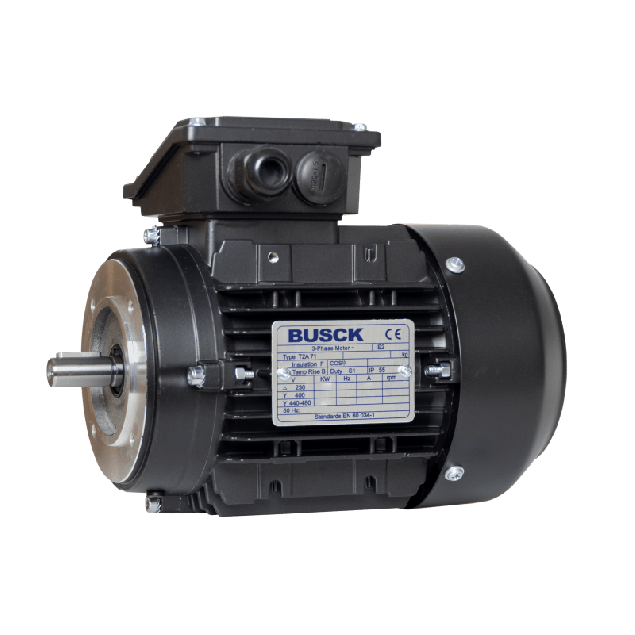

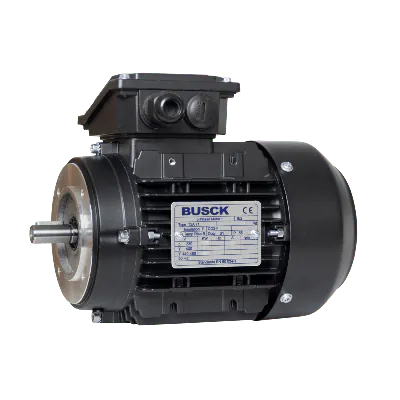

Busck AC motor T2A71A-2, 0,37kW, 2840RPM, B14, 230/400, 50 Hz, Aluminium

T2A71A-2

The Busck AC motor is a three-phase synchronous motor designed to excel under harsh operating conditions. Crafted with precision and engineering excellence, this electric motor sets the standard for reliability and efficiency.

€246.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Efficient cooling: The motor's aluminium housing facilitates efficient heat dissipation, minimizing the risk of overheating and enhancing performance.
  • IP55 rating: With an IP55 rating, the motor is highly resistant to dust and water ingress, safeguarding its internal components from external contaminants.
  • High power output: At 0.37kW, this motor delivers consistent and powerful performance to meet a wide range of industrial needs.
  • High speed: Operating at 2840RPM, it ensures swift and precise operation for demanding applications.
  • Voltage options: The motor is compatible with both 230V and 400V power supply systems, offering flexibility in various settings.
  • B14 flange mounting: Featuring a B14 flange, the motor can be easily mounted and integrated into existing systems with optimal stability.
  • Energy-efficient: With an IE2-75.1 efficiency rating, the motor helps conserve energy and reduce operational costs.

Specifications:

  • Robust build: Built to withstand harsh demands, the Busck AC motor boasts a durable construction to ensure longevity and trouble-free operation.
  • Wide temperature range: The motor's impressive temperature range of -20°C to +40°C ensures reliable performance in diverse environmental conditions.

Specifications

IP classification
IP 55
Model
T2A71A-2
Speed (RPM)
2840
Rated output (kW)
0.37
Efficiency (% FL)
71.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.57/0.90
Nominal torque (Nm)
1.24
Start current ratio (IA/IN)
5.1
Mounting
B14
BCD
85
Poles
2
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC

Downloads

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
5.00
Country of origin
CHN
