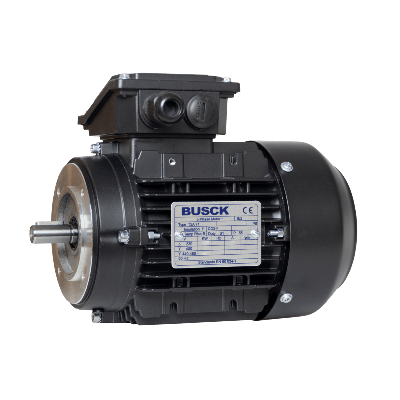

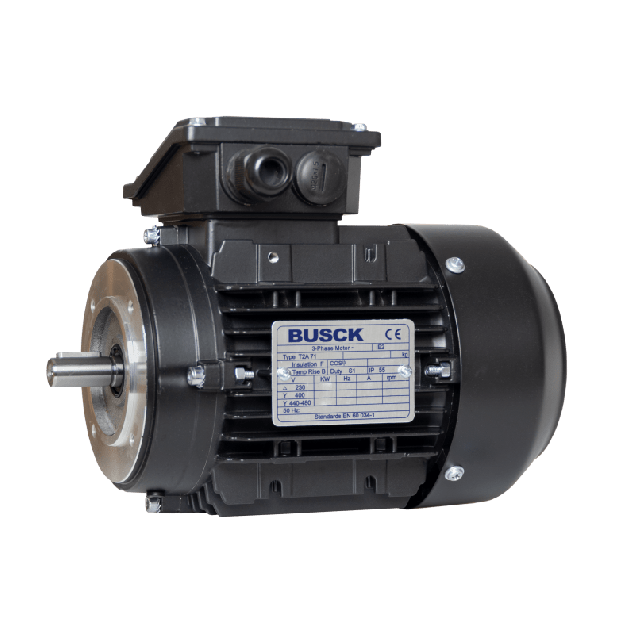

Busck AC motor T2A71B-4A22, 0.37kW, 1400RPM, 230/400V, 50Hz, ATEX 22, aluminium
T2A71B-4A22The Busck AC motor is a robust and flexible high-performance motor designed to meet the demanding requirements. With ATEX 22 certification, it ensures safe operation in potentially explosive atmospheres, making it an ideal choice for hazardous environments.
Specifications
Product description
Downloads
€267.83
In stock
Expected shipment: 20-01-2025
More Information
IP classification
IP 65
Producer
Busck
Model
T2A71B-4A22
Speed (RPM)
1400
Rated output (kW)
0.37
Efficiency (% FL)
72.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.76/1.01
Nominal torque (Nm)
2.52
Start current ratio (IA/IN)
4.7
Mounting
B14
IEC norm
71
BCD
85
Poles
4
Certifications
ATEX 2-22
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- IP65 rating: The IP65 rating ensures protection against dust and water, making the motor suitable for both indoor and outdoor applications.
- 0.37kW power output: This motor boasts a power output of 0.37kW.
- 1400RPM speed: Operating at a speed of 1400RPM, the motor delivers smooth and consistent performance.
- 230/400V voltage: The motor supports a voltage range of 230/400V.
- ATEX 22 certified: Confirms the motors' adherence to the safety standards, evident in their compliance with ATEX II 3D Ex tc IIIC T125°C Dc Zone 22 and ATEX II 3G Ex nA IIC T4 Gc Zone 2 certifications.
- High efficiency: The IE2 efficiency class ensures optimal performance and reduced energy consumption.
Specifications:
- Aluminum build: The motor has a aluminum constructio.
- Temperature range: -20°C to +40°C.
