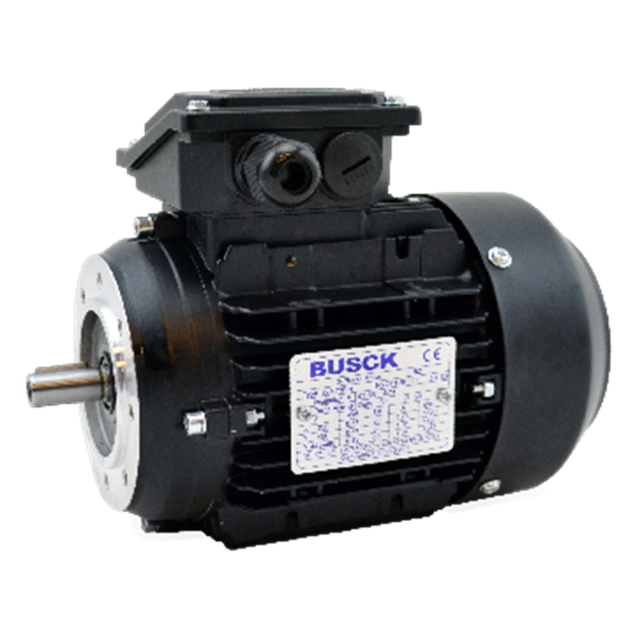

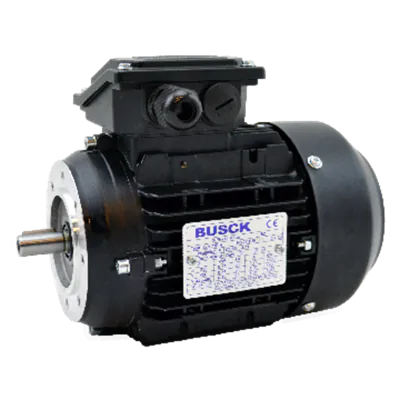

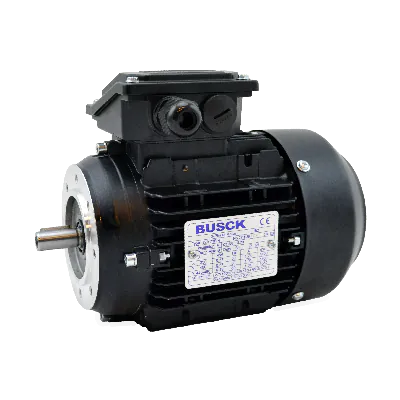

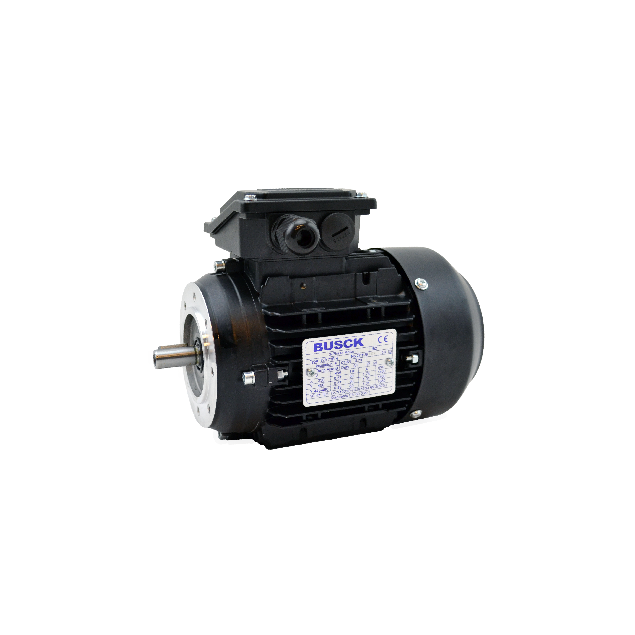

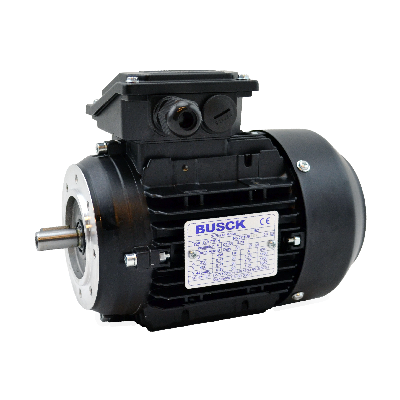

Busck AC motor T2A71B-6HM, 0,25kW, 885RPM, B14 8-hole flange, 230/400, 50 Hz
T2A71B-6HMThe Busck AC Motor T2A71B-6HM is a compact and reliable electric motor designed for industrial applications. It features a rated output of 0.25 kW and a rated speed of 900 RPM, with an operating speed of 885 RPM. Built with a shaft diameter of Ø14 mm and a B14 mounting flange (8-hole), it follows the IEC 71 standard and meets the IE1 efficiency classification. The motor housing is made from aluminium and is equipped with TEFC (Totally Enclosed Fan Cooled) cooling. It has a 6-pole configuration, a BCD of 85 mm, and operates on a 230/400 V, 50 Hz voltage supply. The enclosure provides IP55 protection against dust and water.
Specifications
Product description
Downloads
€236.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T2A71B-6HM
Speed (RPM)
885
Rated output (kW)
0.25
Efficiency (% FL)
62.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.5/0.86
Nominal torque (Nm)
2.7
Start current ratio (IA/IN)
3.2
Mounting
B14
BCD
85
Poles
6
Efficiency standard
IE1
Shaft diameter (mm)
Ø14
Cooling
TEFC
HS-Code
85015100.000000
Description
Key features:
- IP55 rating: With an IP55 rating, this motor is resistant to dust and water, making it suitable for both indoor and outdoor applications.
- High power output: The Busck AC motor delivers an power of 0.25kW, ensuring optimal performance across various industrial tasks.
- Optimized speed: Operating at a speed of 910RPM.
- Efficiency class IE1: Compliant with the high efficiency standards, the motor offers energy-saving benefits while reducing operational costs.
- Voltage compatibility: The motor supports a voltage range of 230/400V, making it compatible with various power systems.
- B14 mounting: Featuring a B14 flange, this motor can be easily mounted.
- 8-Holes: The 8-holes ensures secure and stable installation for long-lasting performance.
Specifications:
- Robust construction: Built with aluminum materials.
- Temperature range: -20°C to +40°C.
