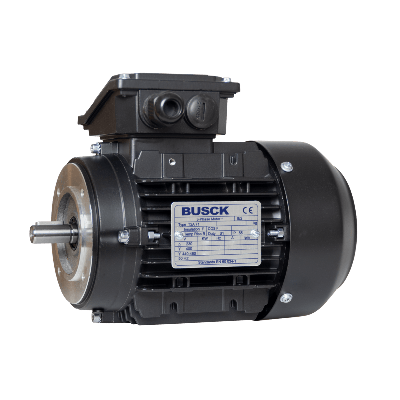

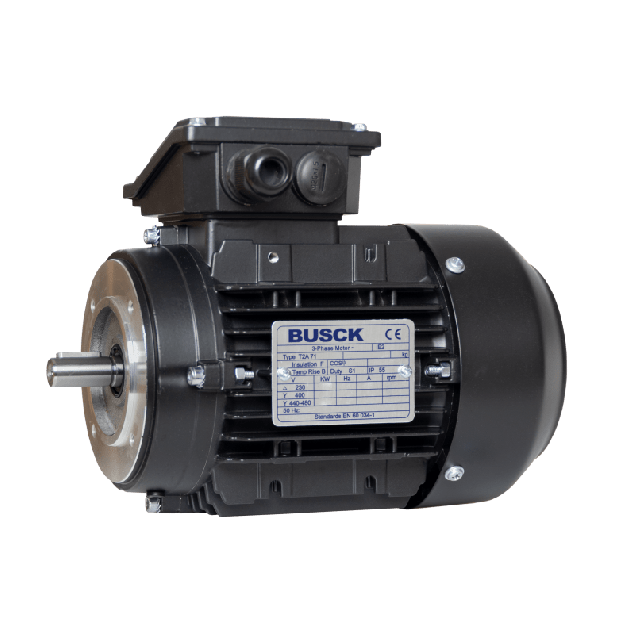

Busck AC motor T2A71B-6, 0,25kW, 910RPM, B14, 230/400, 50 Hz, Aluminium
T2A71B-6The Busck AC motor T2A71B-6 is a robust and efficient drive solution, designed for industrial applications requiring reliable continuous operation.
This 6-pole motor delivers a rated output of 0.25 kW at 910 RPM, providing a nominal torque of 2.62 Nm. The IE2 efficiency class ensures balanced performance and energy consumption.
Built with a lightweight aluminium housing and TEFC (Totally Enclosed Fan Cooled) design, the motor offers dependable protection against dust and water ingress, certified to IP55. The B14 flange mounting with 85 mm BCD ensures compatibility with a wide range of gear units and machinery.
The motor supports 230/400 V Δ/Y connection at 50 Hz, with a rated current of 1.55/0.89 A and a start current ratio of 3.3. The Ø14 mm shaft is precision-machined for secure coupling with driven equipment.
Key advantages:
-
Durable aluminium construction for corrosion resistance and low weight
-
TEFC cooling for reliable operation in demanding environments
-
IP55 protection against dust and water
-
Precision B14 flange mounting for easy integration
Made to order
Expected shipment:
More Information
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water, making it suitable for a wide range of applications, even in challenging environments.
- Powerful performance: The motor boasts a power output of 0.25kW.
- High speed: Operating at 910RPM, the motor delivers swift and efficient operation.
- Efficient energy usage: Rated as IE2, this motor adheres to high energy efficiency standards, ensuring cost-effective operation.
- Dual voltage capability: The motor can be used with both 230V and 400V power supplies.
- B14 flange: Featuring a B14 flange, the motor is designed for easy mounting.
Specifications:
- Aluminum build: The motor features a aluminum construction.
- Wide temperature range: -20°C to +40°C.
