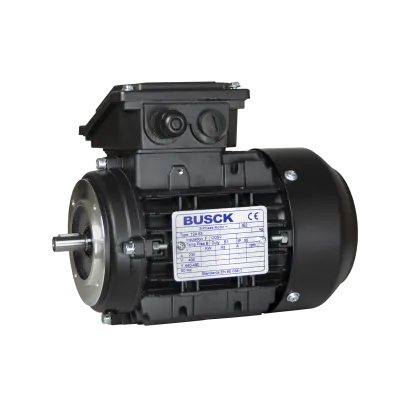

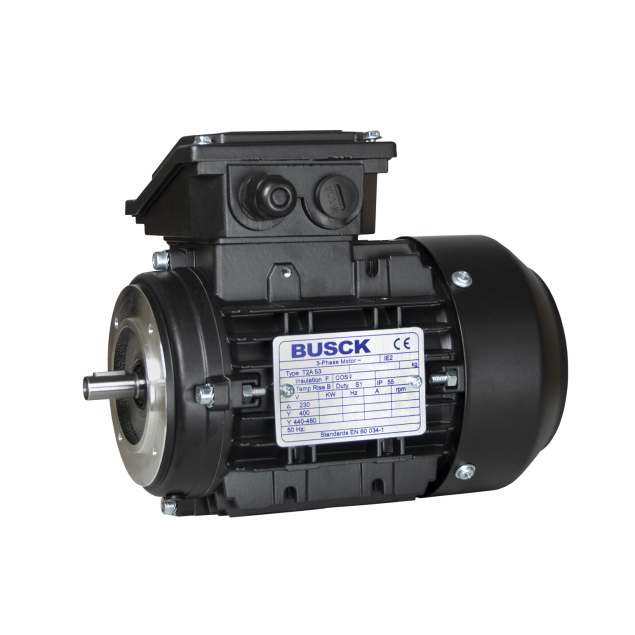

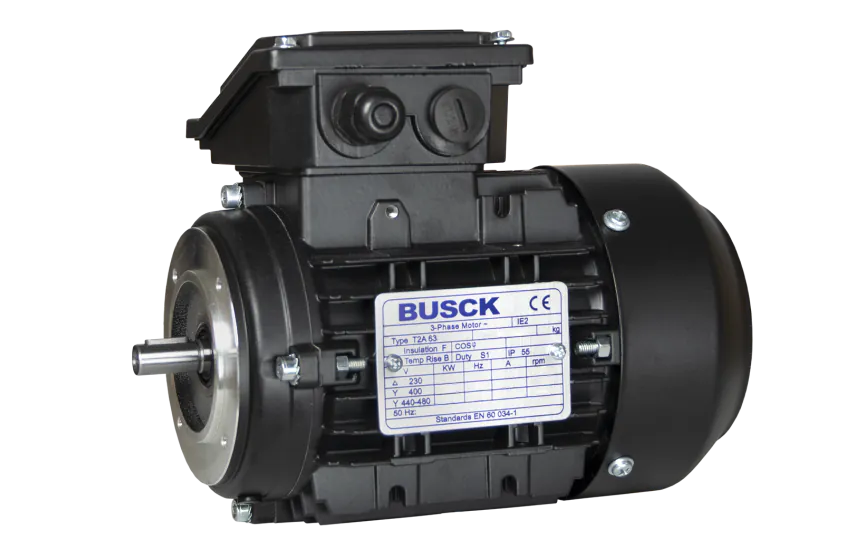

Busck AC motor T2A63B-2, 0,25kW, 2840RPM, B14, 230/400, 50 Hz, Aluminium

T2A63B-2

The Busck AC Motor T2A63B-2 is a 0.25 kW electric motor designed for industrial applications requiring reliable performance. It features a rated speed of 2800 RPM and a speed of 2840 RPM, with 2 poles for high-speed operation. The motor is built according to IEC norm 63 and meets the IE2 efficiency standard. Its shaft diameter is Ø11 mm, and it is mounted via a B14 flange with a bolt circle diameter (BCD) of 75 mm. Constructed from aluminium, it is cooled using the TEFC (Totally Enclosed Fan Cooled) method. The motor has an IP55 classification for dust and water protection and supports a voltage connection of 230/400V, 50 Hz.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2A63B-2

Speed (RPM)

2840

Rated output (kW)

0.25

Efficiency (% FL)

69.8

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.15/0.66

Nominal torque (Nm)

0.84

Start current ratio (IA/IN)

5.2

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, this motor is dust-tight and protected against low-pressure water jets, enhancing its resilience in challenging environments.
High power output: The motor boasts a 0.25kW power rating, providing ample strength for demanding tasks.
High speed: Operating at 2840RPM, this motor offers rapid and efficient performance for various applications.
Voltage compatibility: Capable of handling 230/400V, the motor adapts well to different power supplies, increasing its versatility.
B14 flange: The B14 flange design ensures easy installation and compatibility with various equipment configurations.
High efficiency: With an IE2-69.8 energy efficiency class, the motor optimizes power consumption, leading to cost savings and reduced environmental impact.

Specifications:

Aluminium build: The motor's aluminium construction ensures durability without compromising on weight, making it easy to handle and install.
Wide temperature range: The motor can operate in temperatures ranging from -20°C to +40°C, allowing it to function reliably in diverse climatic conditions.
