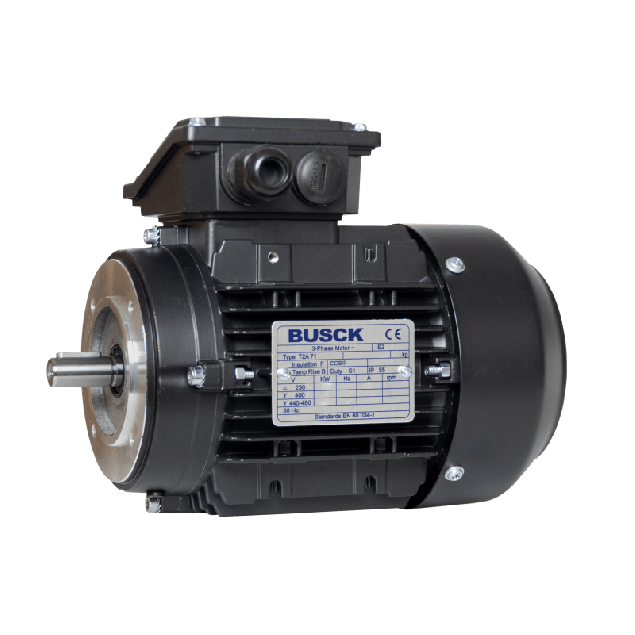

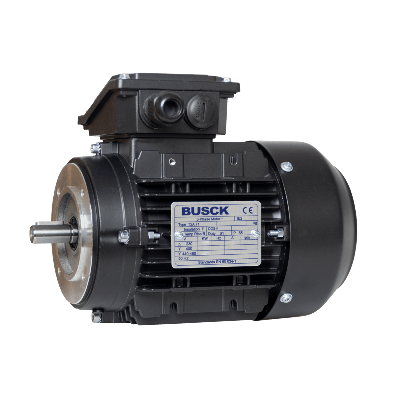

Busck AC motor T2A71A-4, 0,25kW, 1400RPM, B14, 230/400, 50 Hz, Aluminium

T2A71A-4

The Busck AC Motor T2A71A-4 is a compact and efficient electric motor designed for industrial applications. It features a rated output of 0.25 kW and operates at a speed of 1400 RPM. The motor is built according to IEC frame size 71 and meets the IE2 efficiency standard. Designed for B14 mounting, it comes with a shaft diameter of Ø14 mm and a bolt circle diameter (BCD) of 85 mm. The construction is in aluminium for reduced weight and corrosion resistance. It uses TEFC (Totally Enclosed Fan Cooled) cooling and has an IP55 protection rating. The voltage connection is 230/400 V, suitable for standard 50 Hz grid supply. The motor has 4 poles and is produced by Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71A-4

Speed (RPM)

1400

Rated output (kW)

0.25

Efficiency (% FL)

69.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.34/0.77

Nominal torque (Nm)

1.71

Start current ratio (IA/IN)

4.1

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor's IP55 rating provides protection against dust and water, enhancing its durability and reliability.
High power output: With a power rating of 0.25kW, this motor delivers efficient and consistent performance.
Smooth operation: The motor's 1400RPM speed ensures smooth and stable operation, reducing vibrations and enhancing overall efficiency.
Wide voltage range: Designed to adapt to various power systems, the motor can handle both 230V and 400V inputs..
B14 flange: The B14 flange design simplifies installation and integration into existing setups, saving time and effort.
High energy efficiency: The motor is rated IE2, ensuring energy-efficient operation and minimizing power consumption.
