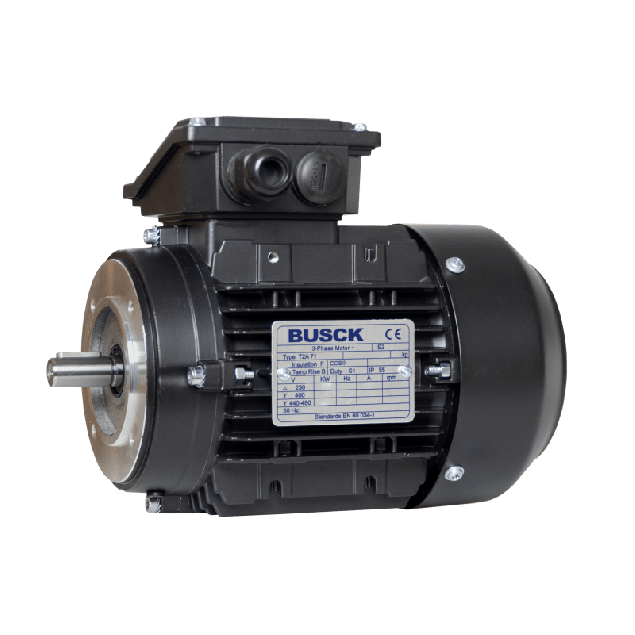

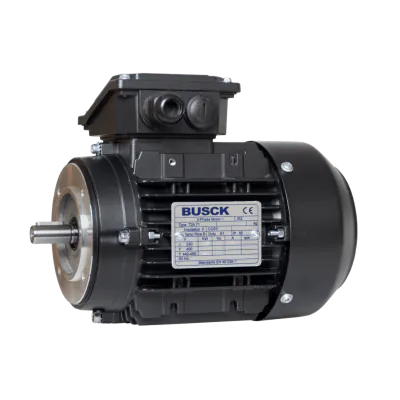

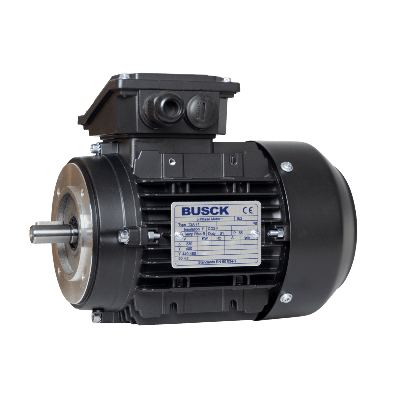

Busck AC motor T2A71A-6, 0,18kW, 850RPM, B14, 230/400, 50 Hz, Aluminium

T2A71A-6

The Busck AC motor T2A71A-6 is a reliable electric motor designed for industrial applications. It features a rated output of 0.18 kW and a rated speed of 900 RPM, with a typical operating speed of 850 RPM. The motor is built according to the IE2 efficiency standard and complies with the IEC 71 norm. It is equipped with a B14 mounting flange, a shaft diameter of Ø14 mm, and has 6 poles. The motor uses TEFC (Totally Enclosed Fan Cooled) cooling and is constructed from aluminium, providing a balance between strength and weight. It has an IP55 enclosure rating, supporting operation in demanding environments. Voltage: 230/400 V, 50 Hz. BCD: 85 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71A-6

Speed (RPM)

850

Rated output (kW)

0.18

Efficiency (% FL)

56.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.2/0.69

Nominal torque (Nm)

2.02

Start current ratio (IA/IN)

3.1

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for various indoor and outdoor applications.
High power output: This motor boasts a power rating of 0.18kW.
Efficient performance: Operating at 850RPM, the motor delivers optimal speed and efficiency for smooth and reliable operation.
Versatile voltage: The motor can be connected to either 230V or 400V power supply, offering versatility for different installation setups.
B14 flange: The B14 flange design allows for easy and secure mounting, ensuring a seamless integration into your machinery.
High efficiency: With an IE2 efficiency rating, the motor minimizes energy consumption and reduces operational costs.

Specifications:
