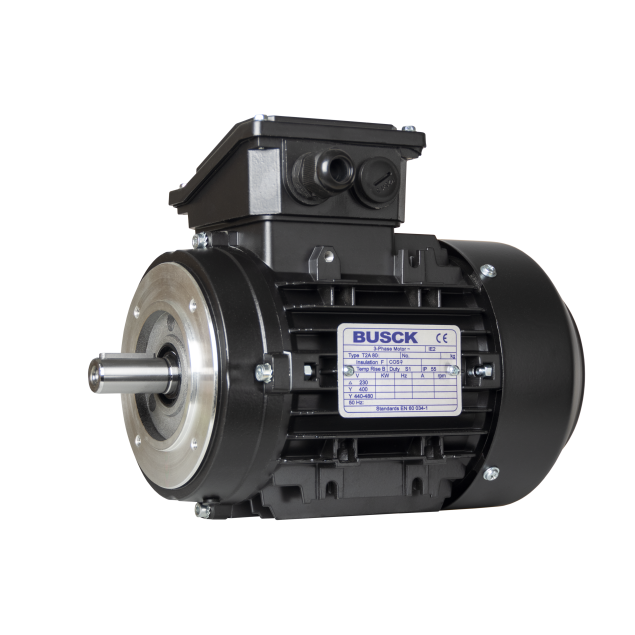

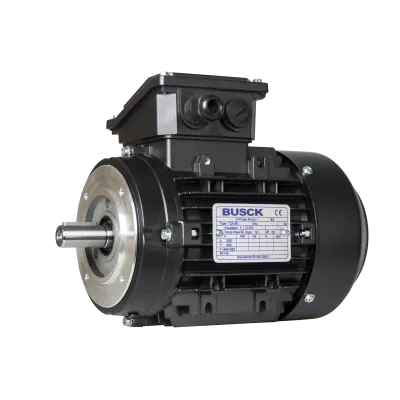

Busck AC motor T2A80A-8, 0,18kW, 700RPM, B14, 230/400, 50 Hz, Aluminium

T2A80A-8

The Busck AC Motor T2A80A-8 is a robust electric motor designed for industrial use. It features 0.18 kW rated output and operates at a rated speed of 700 RPM. With an IEC frame size of 80 and 8 poles, it follows the IE2 efficiency standard. Built with a durable aluminium housing and TEFC cooling (Totally Enclosed Fan Cooled), it ensures consistent performance in demanding environments. The motor has a B14 mounting configuration, a shaft diameter of Ø19 mm, and supports a voltage connection of 230/400V at 50 Hz. It conforms to an IP55 protection class and has a bolt circle diameter (BCD) of 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2A80A-8

Speed (RPM)

700

Rated output (kW)

0.18

Efficiency (% FL)

61.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.3/0.75

Nominal torque (Nm)

2.46

Start current ratio (IA/IN)

3.2

Mounting

B14

BCD

100

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: Provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor use.
High power output: Boasts a power rating of 0.18kW, delivering reliable and efficient performance.
High speed: Operates at 700RPM, allowing for smooth and consistent operation.
Energy efficiency: Complies with IE2 efficiency class standards, ensuring optimal energy utilization.
Voltage compatibility: Supports a voltage range of 230/400V, accommodating various power systems.
B14 flange: Equipped with a B14 flange for easy installation and seamless integration into existing setups.

Specifications:
