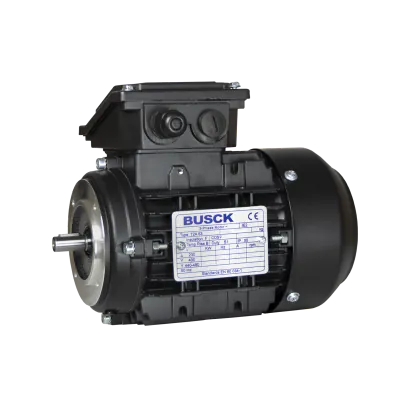

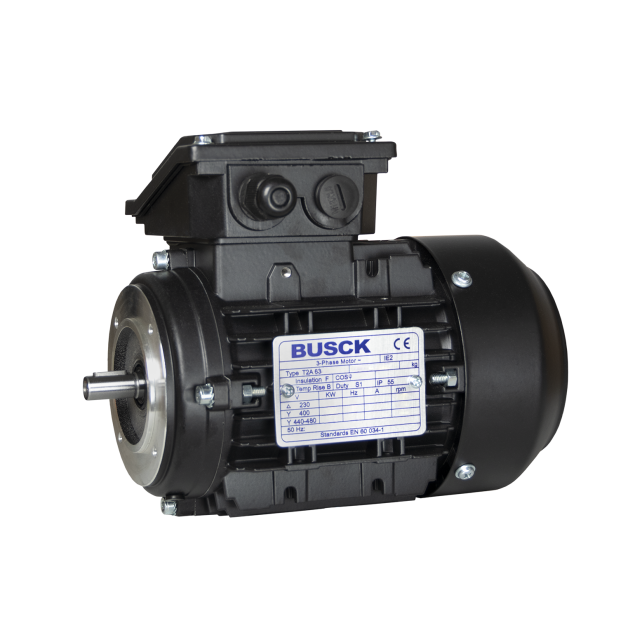

Busck AC motor T2A63A-2, 0,18kW, 2840RPM, B14, 230/400, 50 Hz, Aluminium

T2A63A-2

The Busck AC Motor T2A63A-2 is a compact and reliable electric motor designed for industrial applications. This model features 0.18 kW rated output and delivers a rated speed of 2800 RPM with a 2-pole configuration. The motor operates at a nominal voltage of 230/400V and complies with the IE2 efficiency standard. With a B14 mounting flange and a shaft diameter of Ø11 mm, the T2A63A-2 conforms to IEC frame size 63. Constructed from Aluminium and featuring IP55 protection as well as TEFC cooling, it ensures durability in demanding environments. The BCD is 75 mm. Produced by Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2A63A-2

Speed (RPM)

2840

Rated output (kW)

0.18

Efficiency (% FL)

66.5

Voltage connection (Δ/Y)

230/400

Rated current at voltage

0.90/0.52

Nominal torque (Nm)

0.61

Start current ratio (IA/IN)

4.7

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, ensuring protection against dust and water ingress, making it suitable for both indoor and outdoor applications.
High efficiency: With an impressive 0.18kW output power and an energy-efficient IE2-66.5 rating, the motor ensures minimal energy consumption and reduced operating costs.
High-speed performance: The motor's 2840RPM speed ensures quick and efficient operation, ideal for applications requiring rapid and precise motion.
Wide voltage range: Supporting both 230V and 400V voltage inputs, the motor offers flexibility and compatibility with various power systems.
B14 flange mounting: The B14 flange enables easy and secure mounting, allowing seamless integration into different machinery setups.

Specifications:

Robust construction: Crafted with high-quality aluminum, the Busck AC motor is built to withstand harsh conditions and deliver long-lasting performance.
Extended temperature range: Designed to operate effectively in temperatures ranging from -20°C to +40°C, making it suitable for diverse environmental conditions.
