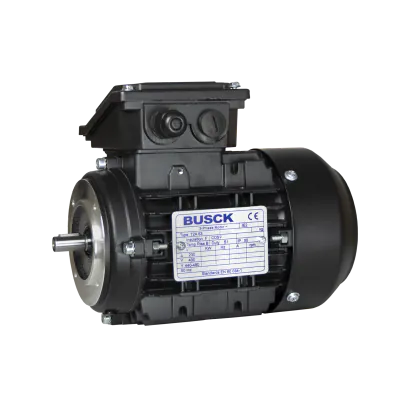

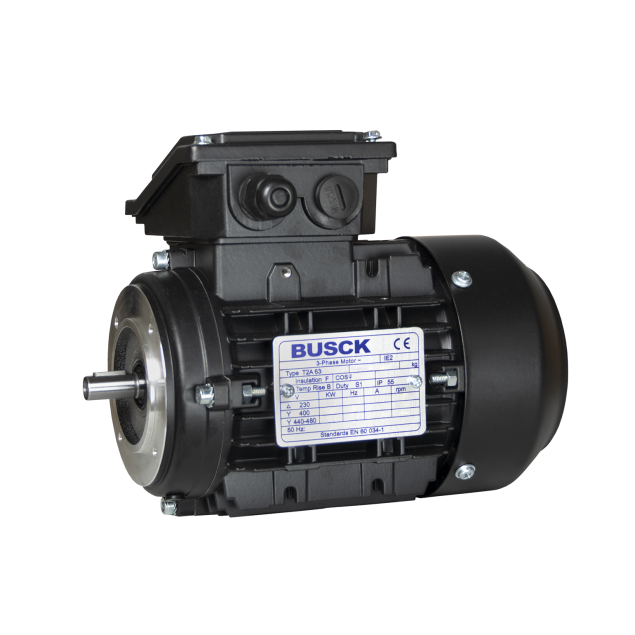

Busck AC motor T2A63B-4, 0,18kW, 1350RPM, B14, 230/400, 50 Hz, Aluminium

T2A63B-4

The Busck T2A63B-4 is a robust AC motor delivering 0.18 kW power output at 1350 RPM. With an IEC B14 flange and a BCD of 75 mm, it ensures flexible integration into various compact drive solutions. Its IP55-rated aluminium housing provides reliable protection against dust and water, making it suitable for demanding industrial environments. Engineered for IE2 efficiency class, it runs on a 230/400 V, 50 Hz supply with a Δ/Y connection. The TEFC cooling system and start current ratio of 3.6 ensure dependable operation. A Ø11 mm shaft offers compatibility with a wide range of couplings and gearboxes, supported by a nominal torque of 1.27 Nm. This motor is an ideal choice for those who value both energy efficiency and proven durability.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A63B-4

Speed (RPM)

1350

Rated output (kW)

0.18

Efficiency (% FL)

64.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

0.96/0.55

Nominal torque (Nm)

1.27

Start current ratio (IA/IN)

3.6

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor is rated IP55, providing protection against dust and water, making it suitable for both indoor and outdoor installations.
Powerful performance: With a power rating of 0.18kW and a speed of 1350RPM, the Busck AC motor delivers performance to meet various industrial requirements.
Wide voltage compatibility: The motor can operate efficiently at both 230V and 400V, offering flexibility in installation and usage.
B14 flange mounting: The B14 flange allows for easy and secure mounting of the motor.
High efficiency: The motor meets IE2 efficiency standards, ensuring optimal energy utilization and cost-effectiveness.

Specifications:
