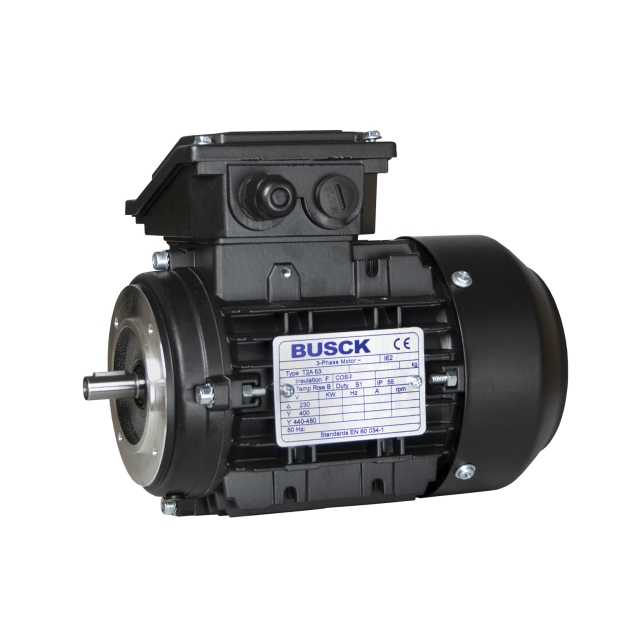

Busck AC motor T2A63B-6, 0,12kW, 850RPM, B14, 230/400, 50 Hz, Aluminium

T2A63B-6

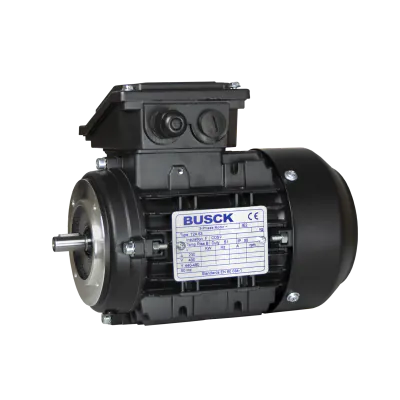

The Busck AC Motor T2A63B-6 is a reliable electric motor designed for industrial applications. This model delivers a rated output of 0.12 kW and operates at a speed of 850 RPM, making it suitable for low-speed requirements. Built according to the IEC 63 standard, it features a 6-pole design and a shaft diameter of Ø11 mm. Cooling type is TEFC (Totally Enclosed Fan Cooled), and the motor has an IP55 protection rating. The motor housing is made from aluminium, ensuring a lightweight and corrosion-resistant construction. It complies with the IE2 efficiency standard and is designed for B14 flange mounting. Voltage connection is 230/400 V at 50 Hz. BCD: 75 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A63B-6

Speed (RPM)

850

Rated output (kW)

0.12

Efficiency (% FL)

50.6

Voltage connection (Δ/Y)

230/400

Rated current at voltage

0.89/0.51

Nominal torque (Nm)

1.35

Start current ratio (IA/IN)

2.7

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress.
High efficiency: Operating at 0.12kW with an IE2 energy efficiency rating, this motor delivers power while conserving energy.
Optimal speed: Running at 850RPM, the motor provides consistent and precise speed control, ensuring smooth operation in various industrial processes.
Voltage compatibility: The motor is designed to work with both 230V and 400V power sources, offering flexibility in installation and adaptability to different electrical setups.
B14 flange mounting: The B14 flange design allows for easy and secure installation, simplifying the integration of the motor into existing systems.

Specifications:
