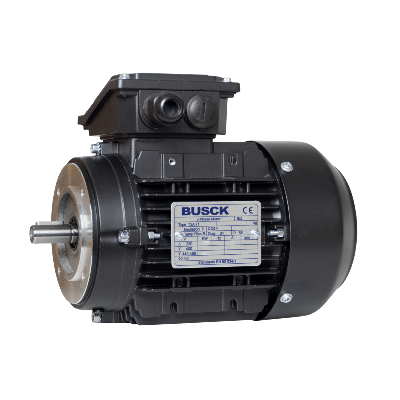

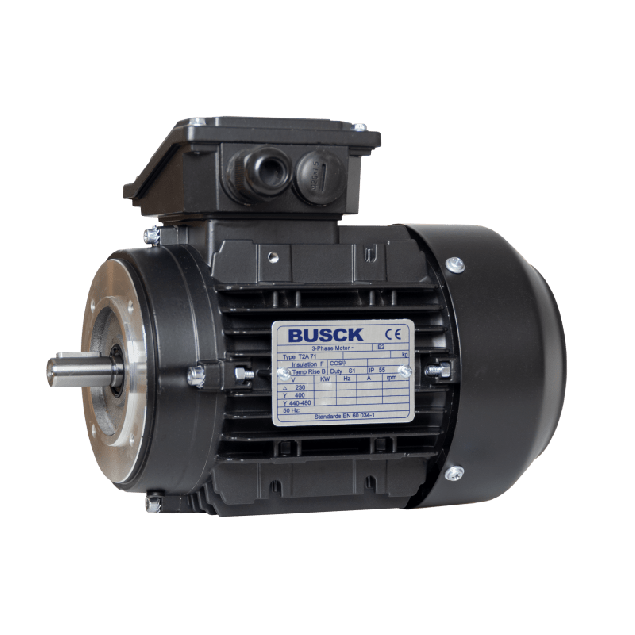

Busck AC motor T2A71B-8, 0,12kW, 685RPM, B14, 230/400, 50 Hz, Aluminium

T2A71B-8

The Busck AC Motor T2A71B-8 is an electric motor designed for reliable operation in industrial environments. It features a rated output of 0.12 kW and a rated speed of 700 RPM, with an actual operating speed of 685 RPM. The mounting type is B14 and it is built to the IEC 71 standard. The motor uses TEFC cooling and has an IP55 protection class for resistance against dust and water ingress. The shaft diameter is Ø14 mm, and the BCD is 85 mm. Constructed from aluminium, the T2A71B-8 is lightweight and corrosion-resistant. It complies with the IE2 energy efficiency class and operates on a voltage connection of 230/400 V at 50 Hz.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A71B-8

Speed (RPM)

685

Rated output (kW)

0.12

Efficiency (% FL)

52.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

0.94/0.54

Nominal torque (Nm)

1.67

Start current ratio (IA/IN)

2.6

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø14

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor's IP55 ingress protection rating shields it from dust and water.
High efficiency: With a power output of 0.12kW and an efficiency class of IE2, this motor minimizes energy consumption while delivering powerful performance.
Smooth operation: Operating at 685RPM, the Busck AC motor provides steady and consistent rotation.
Wide voltage range: Compatible with 230V and 400V power supplies, this motor offers versatility and adaptability.
B14 flange: The B14 flange mount facilitates easy installation and integration into existing systems.
