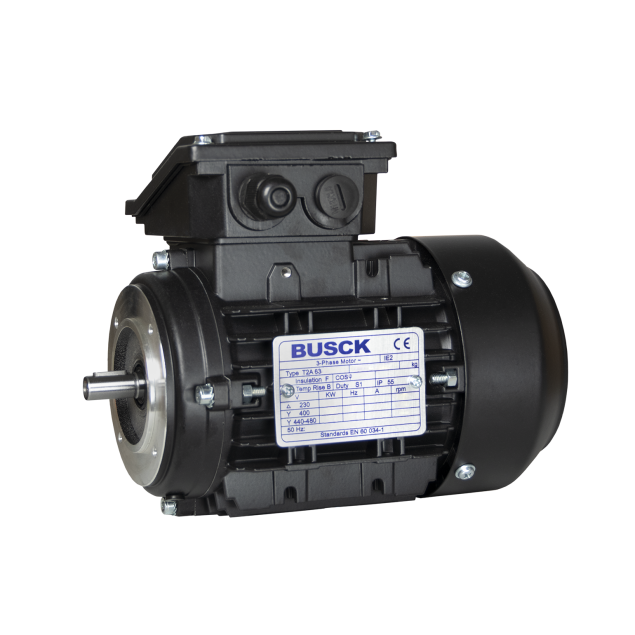

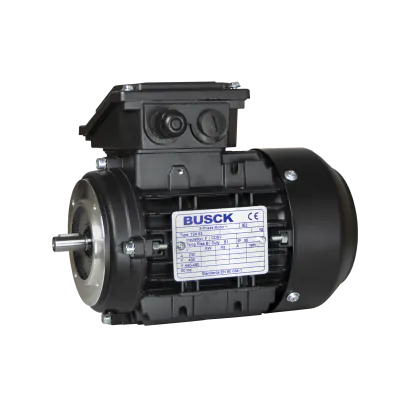

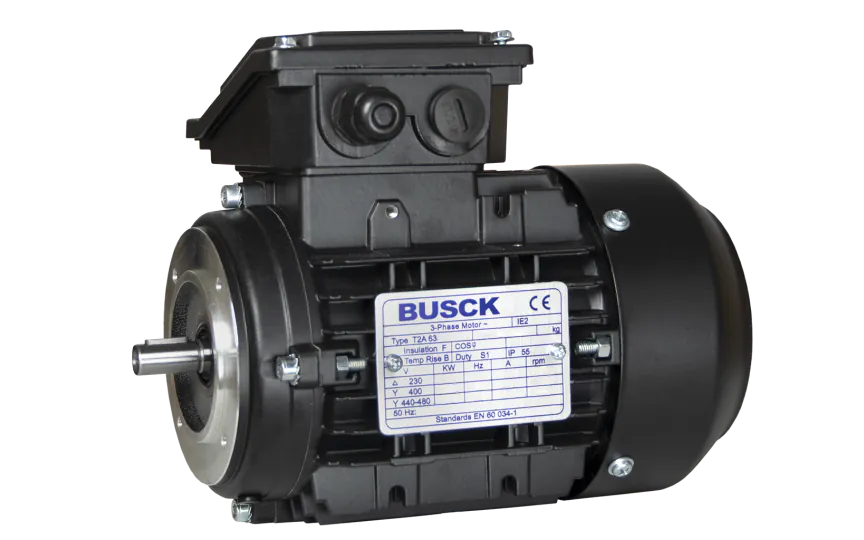

Busck AC motor T2A63A-4, 0,12kW, 1395RPM, B14, 230/400, 50 Hz, Aluminium

T2A63A-4

The Busck AC Motor T2A63A-4 is a compact and durable electric motor designed for industrial applications. It delivers a rated output of 0.12 kW at a rated speed of 1400 RPM (nominal speed: 1395 RPM) and operates with a voltage connection of 230/400 V at 50 Hz. Built with a robust aluminium housing, the motor follows the IEC frame size 63 and complies with IE2 efficiency standards. It features TEFC cooling, IP55 protection, and a B14 mounting flange. The motor shaft has a diameter of Ø11 mm and it is configured with 4 poles. The bolt circle diameter (BCD) is 75 mm. Suitable for applications requiring reliable performance under standard industrial conditions.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T2A63A-4

Speed (RPM)

1395

Rated output (kW)

0.12

Efficiency (% FL)

60.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

0.77/0.44

Nominal torque (Nm)

0.82

Start current ratio (IA/IN)

3.5

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: The motor is dust and water-resistant, making it suitable for both indoor and outdoor applications.
High power output: With a power rating of 0.12kW, this motor delivers consistent and powerful performance.
Optimal speed: Running at 1395RPM, it ensures smooth and controlled operation for various applications.
Voltage flexibility: The motor operates at 230/400V, offering flexibility in power supply requirements.
B14 flange mounting: Designed with B14 flange, facilitating easy and secure installation.
High efficiency: Boasting an IE2 efficiency class, the motor minimizes energy consumption, reducing operational costs.

Specifications:
