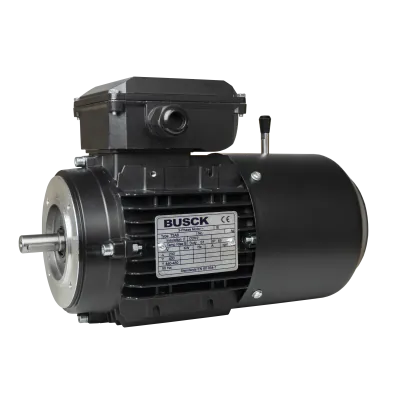

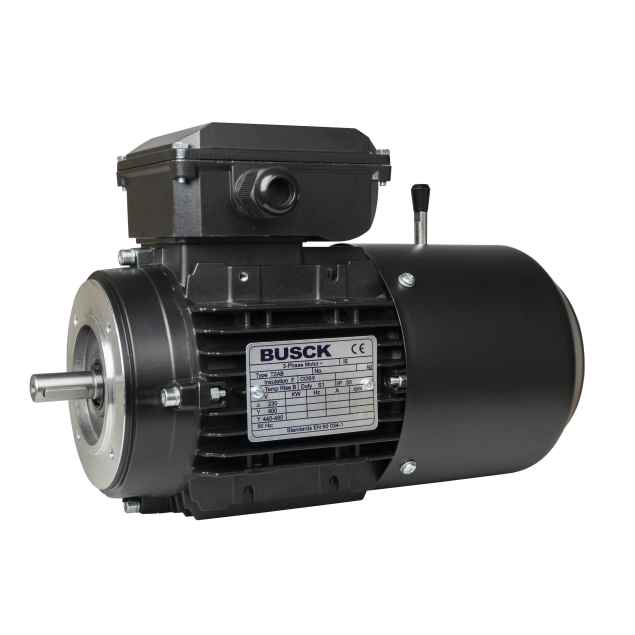

Busck AC brake motor T3AB132MB-6, 5.5kW, 975RPM, 400/690V, 50Hz, aluminium

T3AB132MB-6

The Busck AC Brake Motor T3AB132MB-6 is a three-phase electric motor designed for industrial applications. It delivers a rated output of 5.5 kW at a speed of 975 RPM and is built according to the IEC 132 standard. The motor features 6 poles and conforms to the IE3 efficiency level for energy performance. It comes with TEFC cooling and an IP55 rating for dust and water protection. Constructed from aluminium, it ensures a lightweight yet durable housing. The motor has a B14 mounting, a shaft diameter of Ø38 mm, and a BCD of 165 mm. It supports a voltage connection of 400/690V, 50 Hz.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB132MB-6

Speed (RPM)

975

Rated output (kW)

5.5

Efficiency (% FL)

Voltage connection (Δ/Y)

400/690

Rated current at voltage

12.7/7.3

Nominal torque (Nm)

53.87

Start current ratio (IA/IN)

7.4

Mounting

B14

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, providing protection against dust and water ingress.
Powerful performance: With a 5.5kW output and a rapid 975RPM speed, this motor delivers the muscle needed to tackle demanding tasks effectively.
Wide voltage range: The motor operates at both 400V and 690V, offering flexibility in various electrical setups.
B14 flange: The B14 flange design ensures easy mounting and integration into existing systems.
High braking torque: Equipped with a brake torque of 100 Nm, the motor guarantees swift and reliable braking whenever necessary.
Energy-efficient: Compliant with IE3 efficiency standards, this motor minimizes energy consumption, contributing to cost savings and environmental responsibility.
