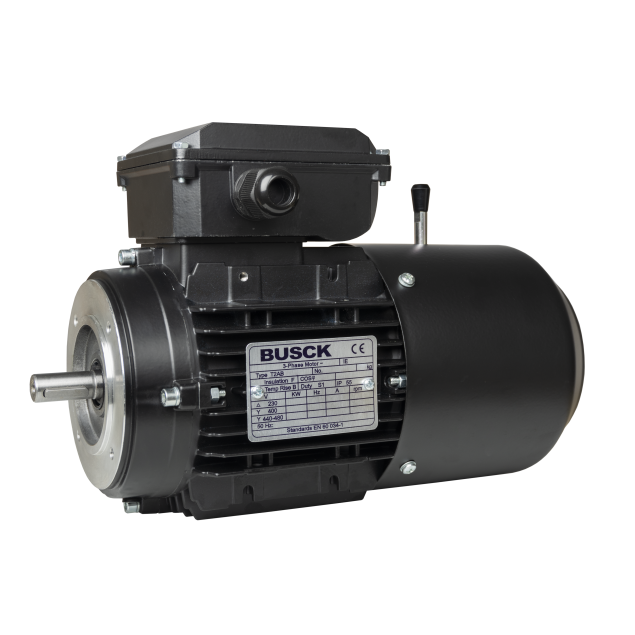

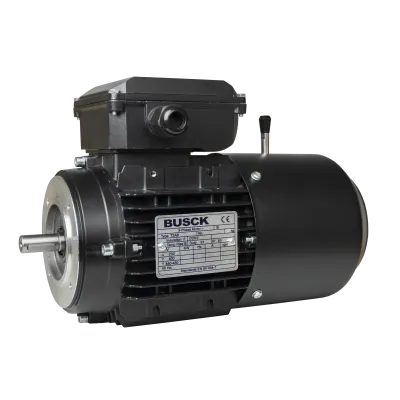

Busck AC brake motor T3AB132SA-2, 5.5kW, 2930RPM, 400/690V, 50Hz, aluminium

T3AB132SA-2

The Busck AC Brake Motor T3AB132SA-2 is a 5.5kW electric motor designed for industrial applications requiring high reliability and standard compliance. Key specifications include a rated output of 5.5 kW and a speed of 2930 RPM. This model operates with a voltage connection of 400/690V at 50 Hz and features 2 poles. It is constructed with a durable aluminium housing and built to the IEC 132 norm. The shaft diameter is Ø38 mm and the B14 mounting ensures compatibility with standard drive systems. Compliant with the IE3 efficiency standard and enclosed in a TEFC (Totally Enclosed Fan Cooled) system, it features a protection class of IP 55. The motor has a BCD of 165 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB132SA-2

Speed (RPM)

2930

Rated output (kW)

5.5

Efficiency (% FL)

89.2

Voltage connection (Δ/Y)

400/690

Rated current at voltage

10.1/5.75

Nominal torque (Nm)

17.93

Start current ratio (IA/IN)

Mounting

B14

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: The motor boasts an IP55 rating, making it resistant to dust and water ingress.
Powerful performance: With a power output of 5.5kW and a speed of 2930RPM, this motor delivers high performance for various industrial applications.
Voltage: The motor operates on a voltage of 400/690V.
B14 flange: The B14 flange design enables easy installation and integration into existing systems.
Brake torque: Equipped with a brake torque of 60 Nm, this motor ensures rapid and secure braking, contributing to enhanced safety in critical operations.
High efficiency: The motor is rated as IE3, guaranteeing energy efficiency and reduced operational costs.

Specifications:
