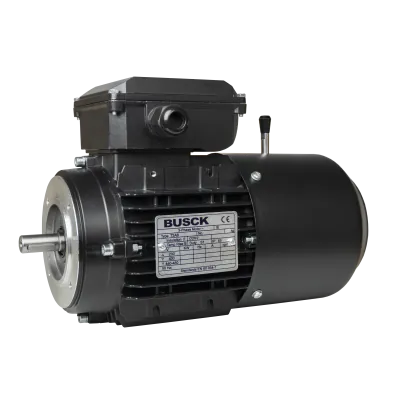

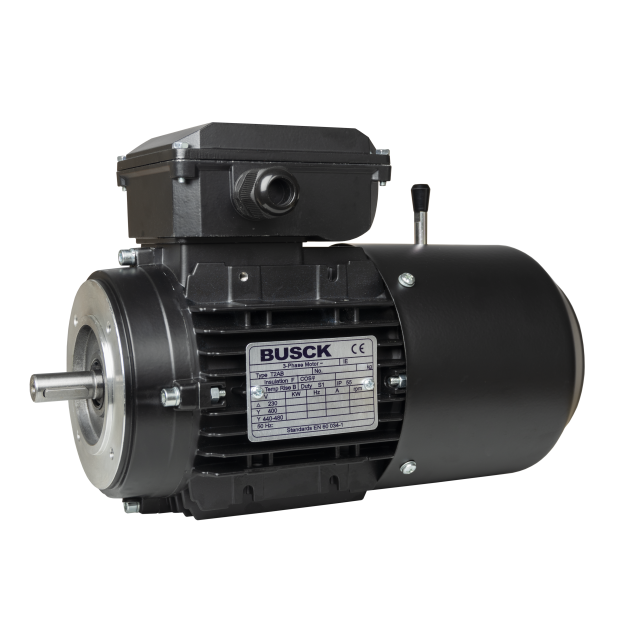

Busck AC brake motor T3AB132S-4, 5.5kW, 1460RPM, 400/690V, 50Hz, aluminium

T3AB132S-4

The Busck AC Brake Motor T3AB132S-4 is a robust electric motor designed for industrial applications requiring consistent performance and reliable braking. This model offers a rated output of 5.5 kW and a rated speed of 1400 RPM with a maximum speed of 1460 RPM. It is built to the IEC 132 norm and features a 4-pole configuration. The motor is constructed in aluminium and uses TEFC cooling, ensuring effective thermal management in industrial environments. The shaft diameter is Ø38 mm, and it has a B14 mounting interface. The motor complies with IE3 efficiency standard and supports a voltage connection of 400/690 V. Protection is rated at IP55, with a bolt circle diameter (BCD) of 165 mm. Produced by Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB132S-4

Speed (RPM)

1460

Rated output (kW)

5.5

Efficiency (% FL)

89.6

Voltage connection (Δ/Y)

400/690

Rated current at voltage

10.5/6.04

Nominal torque (Nm)

35.98

Start current ratio (IA/IN)

Mounting

B14

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø38

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Quick braking time: The Busck AC brake motor boasts an brake torque of 80 Nm, ensuring rapid and efficient braking, enhancing safety.
IP55 rating: The motor is protected against dust and water ingress, making it suitable for both indoor and outdoor applications.
Wide voltage range: With a voltage rating of 400/690V, the motor offers flexibility in power supply options, accommodating various setups.
High efficiency: The IE3 efficiency class ensures reduced energy consumption, promoting cost-effectiveness and sustainability.
B14 flange mounting: The motor features a B14 flange.

Specifications:
