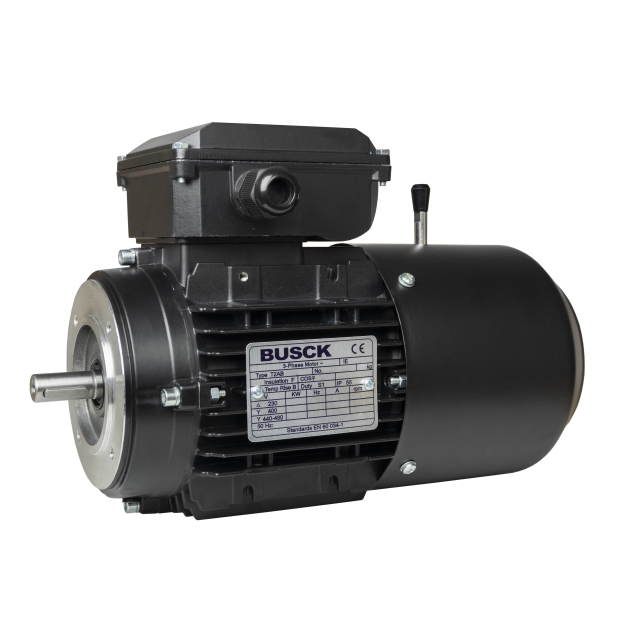

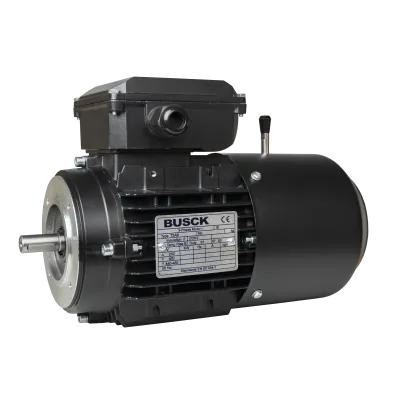

Busck AC brake motor T3AB112MA-4, 4kW, 1450RPM, 400/690V, 50Hz, aluminium

T3AB112MA-4

The Busck AC Brake Motor T3AB112MA-4 is a compact and efficient electric motor designed for industrial use. This model delivers a rated output of 4 kW and operates at a speed of 1450 RPM. It complies with IE3 efficiency standards and follows the IEC 112 frame size norm. The motor is constructed from aluminium and offers TEFC cooling. It features a shaft diameter of Ø28 mm and a B14 mounting configuration. Operating voltage is 400/690V at 50 Hz. Built with 4 poles, it maintains a rated speed of 1400 RPM. The motor has a bolt circle diameter (BCD) of 130 mm and a protection rating of IP 55. Produced by Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB112MA-4

Speed (RPM)

1450

Rated output (kW)

Efficiency (% FL)

88.6

Voltage connection (Δ/Y)

400/690

Rated current at voltage

8.0/4.6

Nominal torque (Nm)

26.34

Start current ratio (IA/IN)

8.6

Mounting

B14

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Reliability and safety: The AC brake motor is built for reliability and operating safety.
Quick braking time: The motor's efficient brake system provides rapid and precise braking.
IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor applications.
High power output: The motor features a power rating of 4kW..
Optimal speed: Operating at 1450RPM, this motor delivers consistent and reliable performance.
Voltage compatibility: The motor supports a wide voltage range of 400/690V.
B14 flange: The B14 flange design allows for easy and secure mounting.
Brake torque: With a brake torque of 60 Nm, the motor ensures precise control.
Energy efficiency: The motor boasts an IE3 energy efficiency rating, minimizing energy consumption and reducing operational costs.
