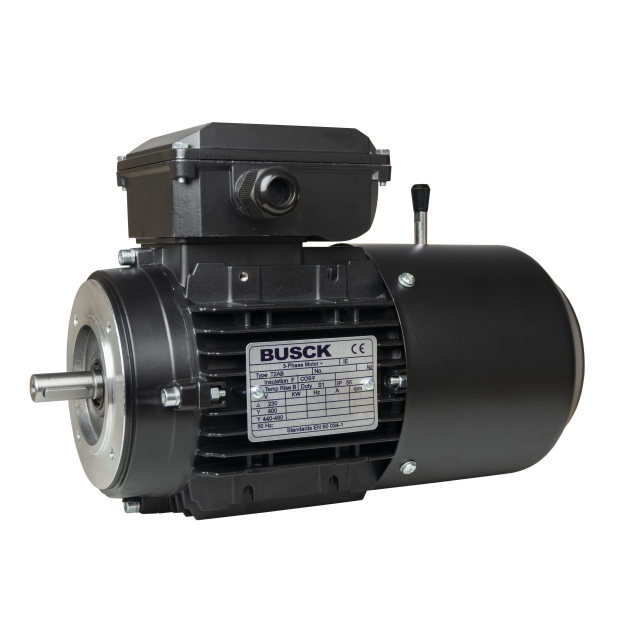

Busck AC brake motor T3AB132M-8, 3kW, 725RPM, 230/400V, 50Hz, aluminium
T3AB132M-8The Busck AC Brake Motor T3AB132M-8 is a reliable three-phase electric motor designed for industrial applications. It delivers a rated output of 3 kW with a rated speed of 700 RPM and an actual speed of 725 RPM. The motor features 8 poles and complies with the IE3 efficiency standard. Constructed in aluminium, it follows the IEC 132 frame size and uses TEFC cooling. The motor has a shaft diameter of Ø38 mm and is equipped with a B14 mounting flange. Additional features include a voltage connection of 230/400V, 50Hz frequency, a BCD of 165 mm, and an IP55 protection rating. Model: Busck T3AB132M-8.
Specifications
Product description
Downloads
€4,089.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T3AB132M-8
Speed (RPM)
725
Rated output (kW)
3
Efficiency (% FL)
83.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
13.88/7.98
Nominal torque (Nm)
39.52
Start current ratio (IA/IN)
6.1
Mounting
B14
BCD
165
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
HS-Code
85015220.000000
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is dust and water-resistant, making it suitable for various indoor and outdoor environments.
- 3kW, 725RPM output: The motor offers a powerful output of 3kW and 725RPM, ensuring optimal performance in various applications.
- B14 flange: The B14 flange provides a secure and adaptable mounting solution, simplifying installation.
- IE3 efficiency rating: This motor meets the IE3 efficiency standards, ensuring energy savings and reduced operating costs.
- Brake torque 80Nm: The motor's high brake torque of 80Nm ensures quick and reliable braking, enhancing safety during operation.
Specifications:
- Aluminum construction: The motor boasts a sturdy and lightweight aluminum build.
- Wide temperature range: -20°C to +40°C.
