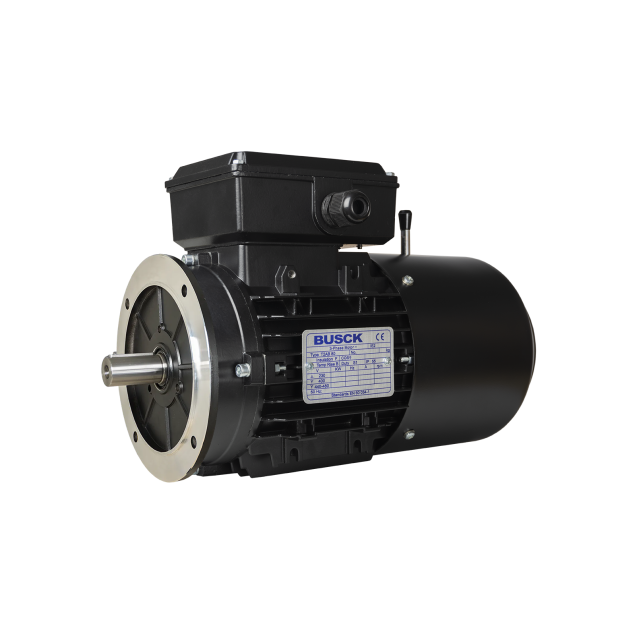

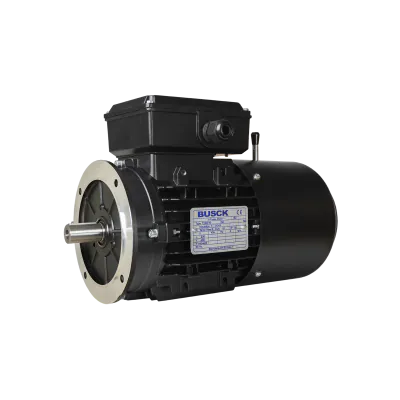

Busck AC brake motor T3AB100LB-4B5, 3kW, 1450RPM, 230/400V, 50Hz, aluminium

T3AB100LB-4B5

The Busck AC brake motor series offers reliability and operating safety, making it the ideal choice for a wide range of applications. With quick braking times and robust construction, this motor ensures enhanced performance and efficiency in various industries.

€1,614.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:
  • IP55 rating: Dust and water-resistant for operation in challenging environments.
  • Powerful performance: 3kW motor for industrial applications.
  • Optimal speed control: 1450RPM for precise regulation.
  • Wide voltage range: 400/690V for flexibility in power supplies.
  • B5 flange design: Easy installation and compatibility.
  • Strong braking torque: 46 Nm for safe and quick braking.
  • High energy efficiency: IE3 standard for reduced energy consumption.

Specifications:

  • Aluminum construction: Ensures durability.
  • Temperature resistant: -20°C to +40°C.

Specifications

IP classification
IP 55
Model
T3AB100LB-4B5
Speed (RPM)
1450
Rated output (kW)
3
Efficiency (% FL)
87.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
10.96/6.3
Nominal torque (Nm)
19.76
Start current ratio (IA/IN)
8.1
Mounting
B5
BCD
215
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Country of origin
CHN
HS-Code
85015220.000000
ERP net weight (Kg)
33.500000

Downloads

3dfile 3dfile step dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015220
ERP net weight (Kg)
33.50
Country of origin
CHN
