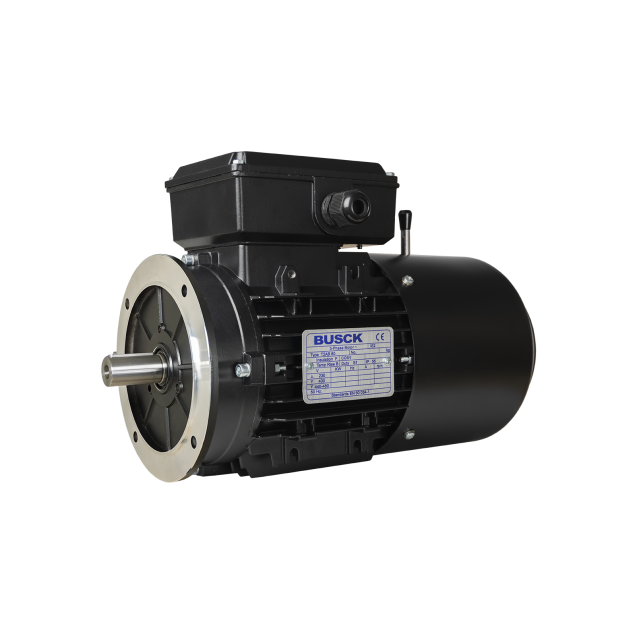

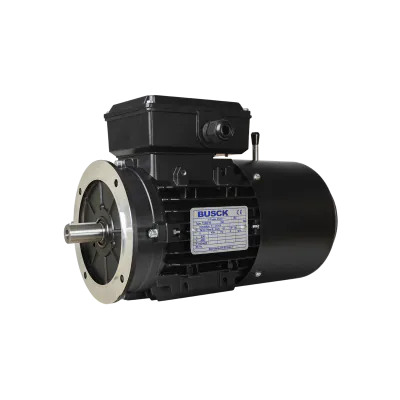

Busck AC brake motor T3AB100LA-4B5, 2.2kW, 1450RPM, 230/400V, 50Hz, aluminium
T3AB100LA-4B5The Busck AC brake motor is a reliable and safety-oriented motor designed to deliver performance and quick braking time. With its robust construction and features, this motor is suitable for a wide range of applications, making it an ideal choice for various industrial needs.
Specifications
Product description
Downloads
€1,488.71
In stock
Expected shipment: 04-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3AB100LA-4B5
Speed (RPM)
1450
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.86/4.5
Nominal torque (Nm)
14.49
Start current ratio (IA/IN)
8
Mounting
B5
IEC norm
100
BCD
215
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is dust and water-resistant, providing reliable operation even in harsh environments.
- 2.2kW power rating: The motor boasts a powerful 2.2kW capacity.
- 1450RPM speed: Operating at a speed of 1450 revolutions per minute, this motor delivers consistent and efficient operation.
- 230/400V voltage: The motor supports both 230V and 400V voltage levels.
- B5 flange: The B5 flange design ensures easy installation and compatibility with standard mounting configurations.
- Brake torque 32 Nm: With a reliable brake torque of 32 Nm, the motor provides secure and rapid braking.
- IE3 efficiency: This motor boasts high energy efficiency IE3, leading to reduced power consumption and lower operating costs.
Specifications:
- Aluminum construction: The motor has a aluminum body.
- Temperature range: -20°C to +40°C.
