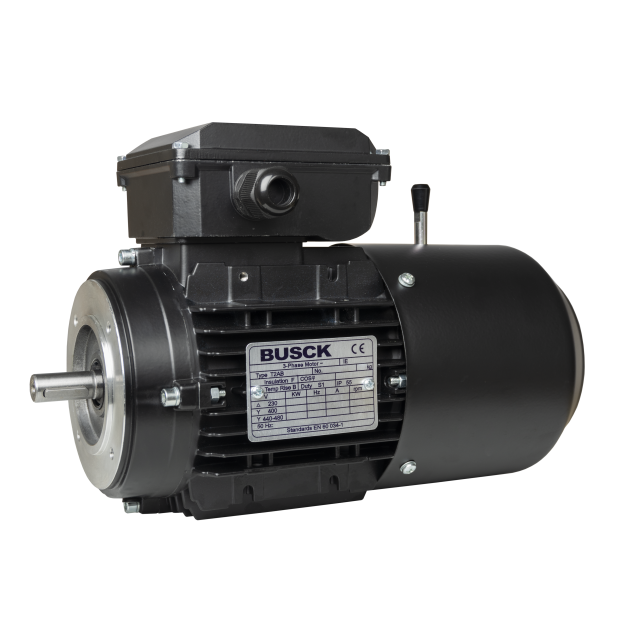

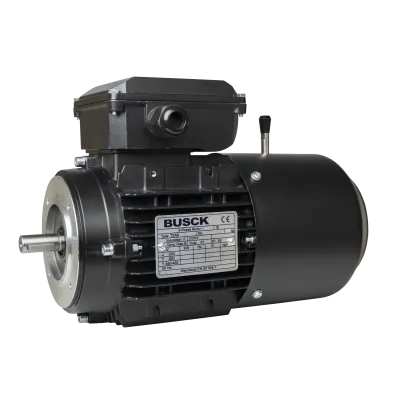

Busck AC brake motor T3AB100LA-4, 2.2kW, 1450RPM, 230/400V, 50Hz, aluminium

T3AB100LA-4

The Busck AC Brake Motor T3AB100LA-4 is a robust electric motor designed for industrial use. It delivers a rated output of 2.2 kW and operates at a speed of 1450 RPM. The motor is built according to IEC 100 standard and complies with the IE3 efficiency class. Engineered with a totally enclosed fan-cooled (TEFC) system and IP55 protection, it ensures durability in demanding environments. The shaft diameter is Ø28 mm, and it features a B14 mounting. Constructed from aluminium, the motor includes 4 poles and supports a voltage connection of 230/400V. The bolt circle diameter (BCD) is 130 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB100LA-4

Speed (RPM)

1450

Rated output (kW)

2.2

Efficiency (% FL)

86.7

Voltage connection (Δ/Y)

230/400

Rated current at voltage

7.83/4.5

Nominal torque (Nm)

14.49

Start current ratio (IA/IN)

Mounting

B14

BCD

130

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø28

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Quick braking time: The motor is equipped with a powerful brake torque of 32 Nm.
IP55 rating: With an IP55 rating, the motor is dust and water-resistant, making it suitable for both indoor and outdoor installations in challenging environments.
High efficiency: The motor boasts an IE3 efficiency rating, ensuring reduced energy consumption and operational costs.
Flexible voltage pptions: The motor can operate on either 230V or 400V power supply, providing flexibility in different industrial setups.
B14 flange mounting: The B14 flange mounting design offers easy installation and integration into existing systems.
