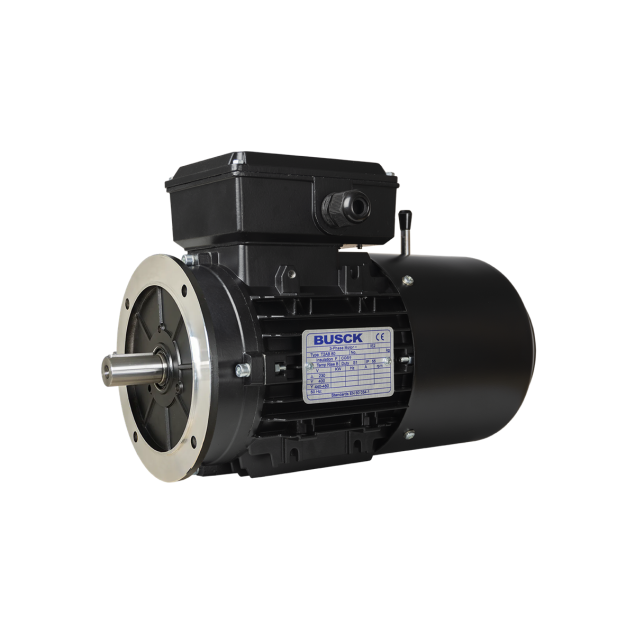

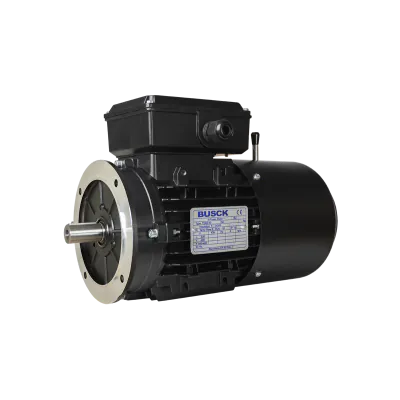

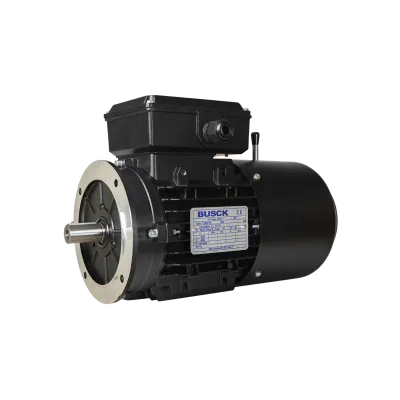

Busck AC brake motor T3AB160L-4B5, 15kW, 1470RPM, 400/690V, 50Hz, aluminium

T3AB160L-4B5

The Busck AC Brake Motor T3AB160L-4B5 is a 15kW electric motor designed for industrial applications requiring reliable performance and standard-compliant construction. It features a rated output of 15 kW and operates at a rated speed of 1400 RPM, with a maximum speed up to 1470 RPM. This motor is built according to the IEC 160 standard and delivers efficiency in line with the IE3 classification. Built from aluminium and employing TEFC cooling, it ensures stable thermal management. The motor has 4 poles, a B5 mounting flange, and an IP55 enclosure for protection against dust and water. Shaft diameter is Ø42 mm, with a bolt circle diameter (BCD) of 300 mm. Voltage connection: 400/690V, 50Hz.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB160L-4B5

Speed (RPM)

1470

Rated output (kW)

Efficiency (% FL)

92.1

Voltage connection (Δ/Y)

400/690

Rated current at voltage

27.7/15.9

Nominal torque (Nm)

97.45

Start current ratio (IA/IN)

9.2

Mounting

BCD

300

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø42

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Brake system: Equipped with a powerful brake torque of 185 Nm, enhancing safety during operation.
IP55 rating: The motor is dust and water-resistant, making it suitable for use in challenging environments, enhancing its lifespan.
High power output: With a capacity of 15kW, the motor offers ample power for various industrial applications.
Efficiency: Rated at IE3, this motor is designed for high energy efficiency, contributing to reduced operating costs and environmental impact.
Voltage compatibility: Suitable for 400/690V power supply, making it adaptable to various electrical setups.
B5 flange mounting: The motor features a B5 flange design.
