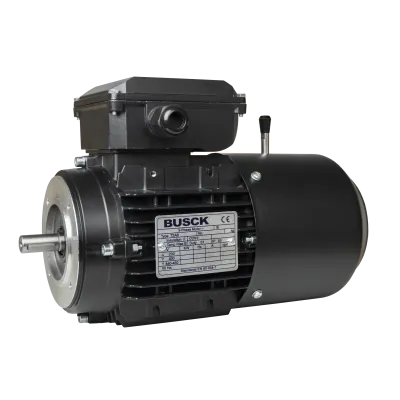

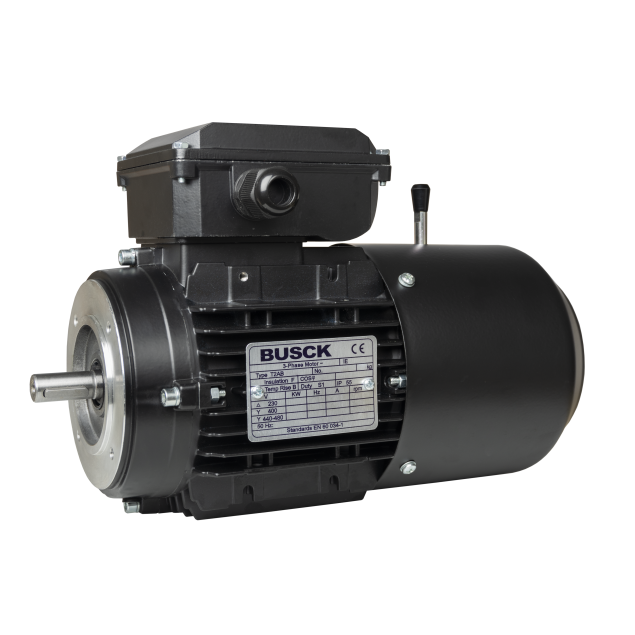

Busck AC brake motor T3AB100L-6, 1.5kW, 950RPM, 230/400V, 50Hz, aluminium
T3AB100L-6The Busck AC brake motor is a highly reliable and safe motor designed for various applications that demand quick braking times. With its sturdy aluminum construction and IP55 rating, this motor ensures performance even in harsh environments.
Specifications
Product description
Downloads
€1,518.90
In stock
Expected shipment: 07-02-2025
More Information
IP classification
IP 55
Model
T3AB100L-6
Speed (RPM)
950
Rated output (kW)
1.5
Efficiency (% FL)
52.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
6.52/3.75
Nominal torque (Nm)
15.08
Start current ratio (IA/IN)
5.5
Mounting
B14
IEC norm
100
BCD
130
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- High braking efficiency: The motor's integrated brake system delivers a brake torque of 32 Nm, guaranteeing rapid and precise stopping.
- Versatile voltage compatibility: The motor can operate at both 230V and 400V, providing flexibility in various electrical setups.
- Efficient power output: With a power rating of 1.5kW, this motor exhibits consistent and dependable performance.
- Optimal speed range: The motor operates at 950RPM, striking a balance between torque and speed for diverse application requirements.
- B14 flange design: The B14 flange allows for easy installation and compatibility with different mounting configurations.
- Energy efficient: The IE3 efficiency class ensures reduced energy consumption and complies with environmental standards.
Specifications:
- Aluminum construction: The motor boasts a sturdy and lightweight aluminum build.
- Wide temperature range: -20°C to +40°C.
