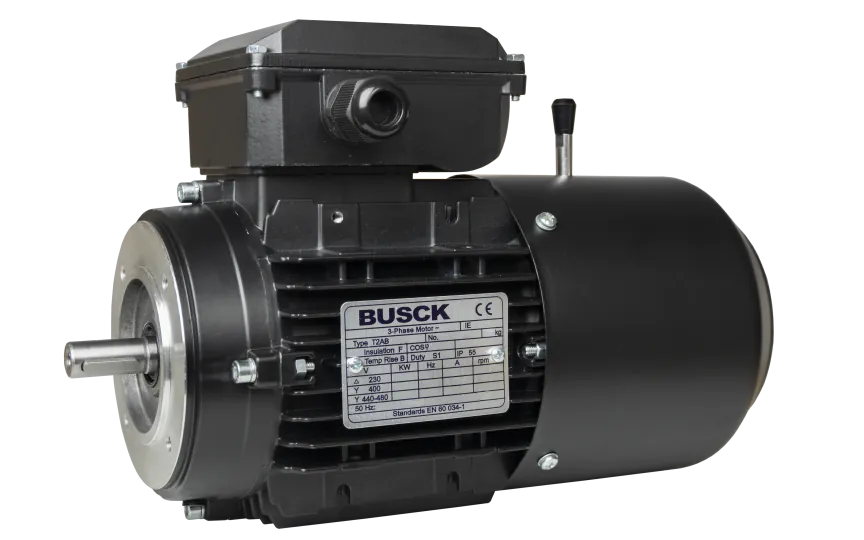

Busck AC brake motor T3AB112M-8, 1.5kW, 715RPM, 230/400V, 50Hz, aluminium
T3AB112M-8The Busck AC brake motor is a reliable and safe solution designed to deliver performance with its quick braking time. Its robust construction and advanced features make it a versatile choice for a wide range of applications.
Specifications
Product description
Downloads
€2,298.22
In stock
Expected shipment: 03-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3AB112M-8
Speed (RPM)
715
Rated output (kW)
1.5
Efficiency (% FL)
79.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.27/4.18
Nominal torque (Nm)
20.03
Start current ratio (IA/IN)
5
Mounting
B14
IEC norm
112
BCD
130
Poles
8
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and low-pressure water jets, making it suitable for various industrial environments.
- 1.5kW 715RPM motor: The powerful 1.5kW motor offers reliable and consistent performance to meet your application's demands effectively.
- 230/400V voltage: The motor is compatible with both 230V and 400V power supply.
- B14 flange: The B14 flange design ensures easy mounting and compatibility with a wide range of machinery and equipment.
- Brake torque 60Nm: The motor's brake torque of 60Nm ensures rapid and secure braking.
- IE3 efficiency: With an IE3 efficiency rating, the motor delivers energy efficiency, reducing operational costs and environmental impact.
Specifications:
- Aluminum build: The motor is made from aluminum.
- Temperature range: -20°C to +40°C.
