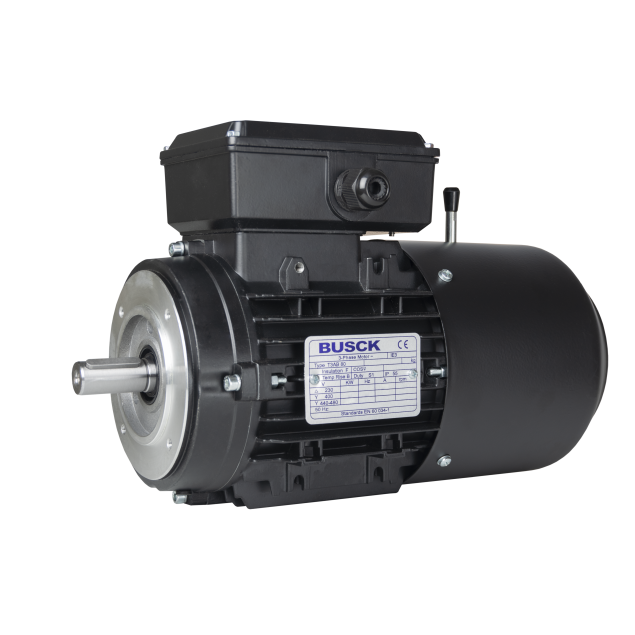

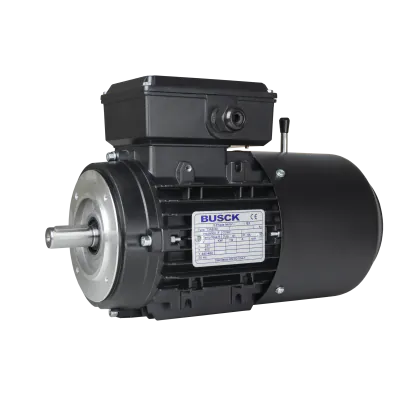

Busck AC brake motor T3AB80C-2, 1.5kW, 2910RPM, 230/400V, 50Hz, aluminium

T3AB80C-2
The Busck AC Brake Motor T3AB80C-2 is a compact and efficient electric motor designed for industrial applications. It features a rated output of 1.5 kW and operates at a speed of 2910 RPM, with a rated speed of 2800 RPM. Built with a B14 mounting configuration and 76 mm bolt circle diameter (BCD 100), it fits standard setups. The motor has an IEC frame size of 80 and a shaft diameter of Ø19 mm. Housing is made of aluminium and utilizes TEFC cooling. It complies with the IE3 efficiency standard and has 2 poles, connected via 230/400 V, 50 Hz. The IP55 protection class ensures resistance to dust and water.
€789.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • IP55 rating ensures protection against dust and water ingress
  • 1.5kW power output for efficient performance
  • 2910RPM speed for smooth and precise operation
  • 230/400V voltage for versatile power supply options
  • B14 flange enables easy installation and compatibility with standard mounting
  • Brake torque of 12 Nm ensures quick and reliable braking
  • IE3-84.2 efficiency rating for energy savings and environmental benefits

Specifications:

  • Aluminum construction for durability and lightweight design
  • Wide temperature range from -20°C to +40°C allows usage in varying climates

Specifications

IP classification
IP 55
Model
T3AB80C-2
Speed (RPM)
2910
Rated output (kW)
1.5
Efficiency (% FL)
84.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.51/3.17
Nominal torque (Nm)
4.92
Start current ratio (IA/IN)
9.6
Mounting
B14
BCD
100
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC

Downloads

dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015220
ERP net weight (Kg)
14.00
Country of origin
CHN
