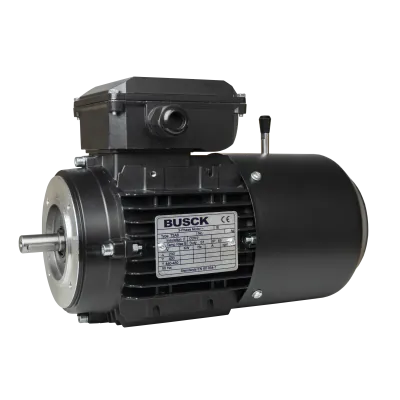

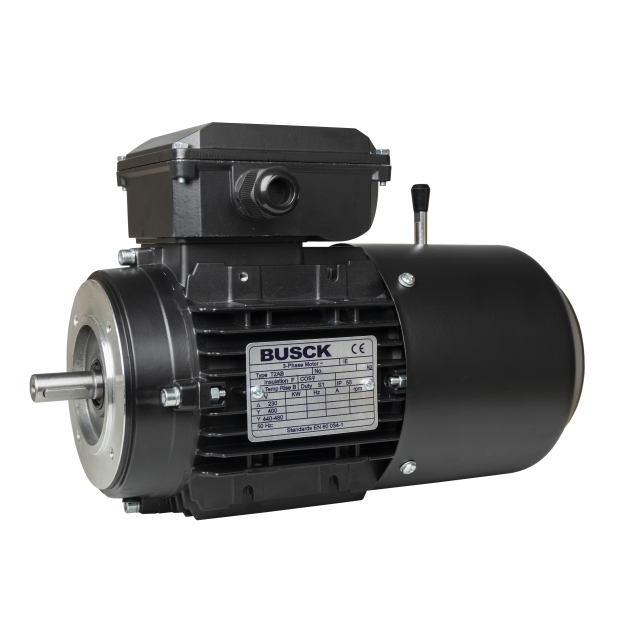

Busck AC brake motor T3AB90S-2, 1.5kW, 2900RPM, 230/400V, 50Hz, aluminium

T3AB90S-2

The Busck AC Brake Motor T3AB90S-2 is a robust electric motor designed for industrial applications. It delivers a rated output of 1.5 kW at a speed of 2900 RPM and supports a voltage connection of 230/400V at 50Hz. Built with a durable aluminium housing, this motor complies with the IE3 efficiency standard and IEC motor size 90. Featuring TEFC cooling and an IP55 protection class, it ensures reliability in demanding environments. The motor includes a B14 mounting, 24 mm shaft diameter, and 2-pole configuration. The bolt circle diameter (BCD) is 115 mm. Designed and manufactured by Busck.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T3AB90S-2

Speed (RPM)

2900

Rated output (kW)

1.5

Efficiency (% FL)

84.2

Voltage connection (Δ/Y)

230/400

Rated current at voltage

5.46/3.14

Nominal torque (Nm)

4.94

Start current ratio (IA/IN)

8.3

Mounting

B14

BCD

115

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

IP55 rating: Provides protection against dust and water ingress, making it suitable for both indoor and outdoor environments.
Powerful performance: Boasting a 1.5kW motor, delivering efficient and consistent power output.
High speeds: Operates at 2900RPM, ensuring swift and precise performance in various applications.
Flexible voltage: Compatible with both 230V and 400V power supply, offering versatility in different setups.
B14 flange: Designed with a B14 flange, making it easy to mount and integrate into different systems.
Brake torque: Equipped with a strong brake torque of 16 Nm, enhancing safety during operation.
Energy efficient: Rated IE3 for energy efficiency, reducing power consumption and operating costs.

Specifications:
