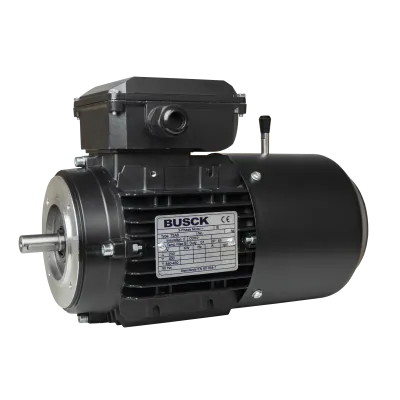

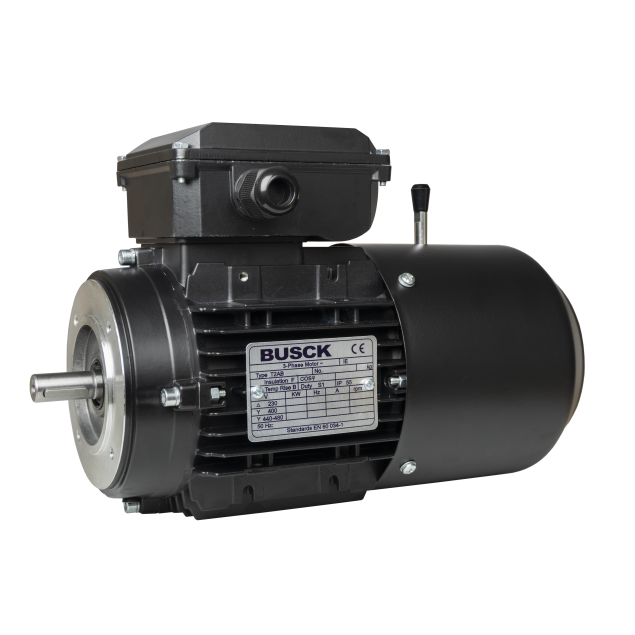

Busck AC brake motor T3AB90L-6, 1.1kW, 950RPM, 230/400V, 50Hz, aluminium
T3AB90L-6The Busck AC brake motor is a high-quality motor designed for optimal reliability, safety, and efficiency. With its quick braking time and performance, it is ideal for a wide range of applications.
Specifications
Product description
Downloads
€1,214.01
In stock
Expected shipment: 27-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3AB90L-6
Speed (RPM)
950
Rated output (kW)
1.1
Efficiency (% FL)
81
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.04/2.9
Nominal torque (Nm)
11.06
Start current ratio (IA/IN)
5.2
Mounting
B14
IEC norm
90
BCD
115
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress.
- 1.1kW power: The motor offers a 1.1kW output, providing ample performance for different industrial and commercial applications.
- 950RPM speed: Operating at 950RPM, this motor delivers consistent and controlled power output across various loads.
- 230/400V voltage: The motor supports dual voltage configurations (230V and 400V), enabling flexible usage and compatibility.
- B14 flange: The B14 flange design ensures easy installation and alignment.
- Brake torque 23 Nm: Equipped with a robust brake torque of 23 Nm, this motor offers efficient and secure braking.
- IE3 efficiency: The motor adheres to IE3 efficiency standards, optimizing energy usage and reducing operating costs.
Specifications:
- Aluminum build: The motor features an aluminum construction.
- Temperature range: -20°C to +40°C.
