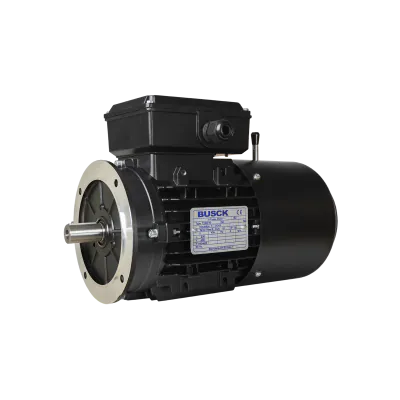

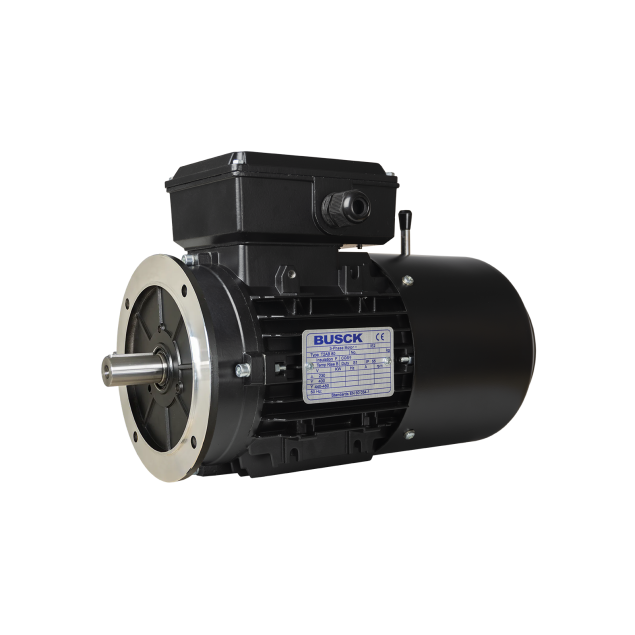

Busck AC brake motor T3AB90S-4B5, 1.1kW, 1440RPM, 230/400V, 50Hz, aluminium

T3AB90S-4B5

The Busck AC brake motor is a reliable and robust solution designed to deliver braking performance and operational safety in a wide range of applications. Crafted with precision and built for efficiency, this motor series is an ideal choice for industries that demand quick braking times and consistent performance.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

In stock

Expected shipment: 23-02-2025

More Information

IP classification

IP 55

Model

T3AB90S-4B5

Speed (RPM)

1440

Rated output (kW)

1.1

Efficiency (% FL)

84.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

4.43/2.55

Nominal torque (Nm)

7.3

Start current ratio (IA/IN)

7.7

Mounting

IEC norm

BCD

165

Poles

Efficiency standard

IE3

Shaft diameter (mm)

Ø24

Cooling

TEFC

Thermal protection

PTO

Description

Key features:

Quick braking time: The Busck AC Brake Motor boasts an brake torque of 16 Nm, ensuring rapid and precise braking.
IP55 rating: With an IP55 rating, this motor is effectively protected against dust ingress and water jets, making it suitable for challenging environments.
High power output: The motor delivers a powerful 1.1kW performance.
Versatile voltage rating: With a voltage rating of 230/400V.
B5 flange mounting: The B5 flange mount design ensures easy installation and compatibility with standard mechanical connections.
Efficiency and energy savings: Compliant with IE3 efficiency standards, the motor minimizes energy consumption.
