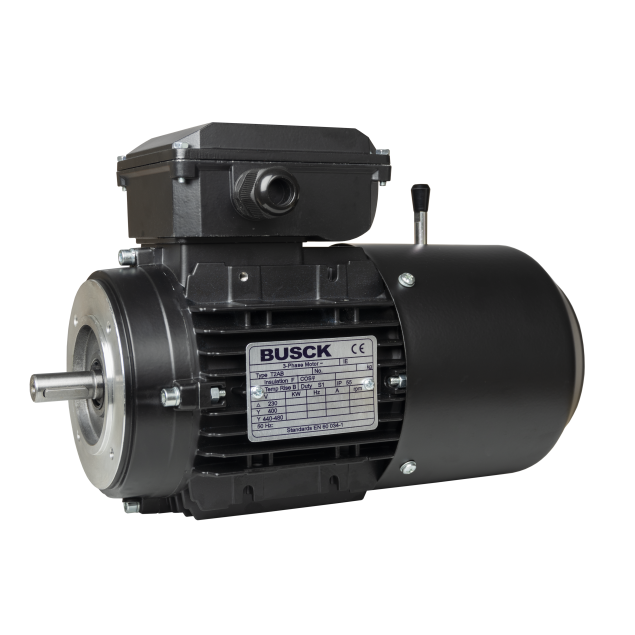

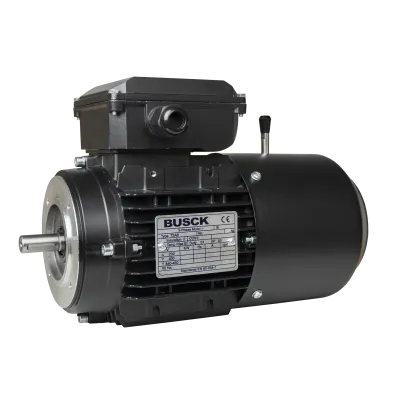

Busck AC brake motor T3AB90S-4, 1.1kW, 1440RPM, 230/400V, 50Hz, aluminium
T3AB90S-4The Busck AC brake motor is a high-performance motor designed to offer reliability and operating safety. With quick braking times and a sturdy construction, this motor is suitable for a wide range of applications.
Specifications
Product description
Downloads
€1,136.44
In stock
Expected shipment: 05-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T3AB90S-4
Speed (RPM)
1440
Rated output (kW)
1.1
Efficiency (% FL)
84.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.43/2.55
Nominal torque (Nm)
7.3
Start current ratio (IA/IN)
7.7
Mounting
B14
IEC norm
90
BCD
115
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Braking time: The brake motor boasts an quick braking time, ensuring prompt and precise stopping in critical situations.
- IP55 rating: The motor's IP55 rating ensures protection against dust and water, making it suitable for various environments.
- Powerful performance: With a power rating of 1.1kW and a speed of 1440RPM, this motor delivers consistent and efficient performance.
- Dual voltage compatibility: The motor can operate at both 230V and 400V.
- B14 flange mounting: The B14 flange mount enables easy installation and compatibility with standard mechanical components.
- High braking torque: Boasting a brake torque of 16 Nm, the motor guarantees secure and stable braking operations.
- IE3 efficiency: The motor meets the IE3 efficiency standard, ensuring reduced energy consumption and cost savings.
Specifications:
- Sturdy aluminum build: Built with aluminum materials.
- Wide temperature range: -20°C to +40°C.
