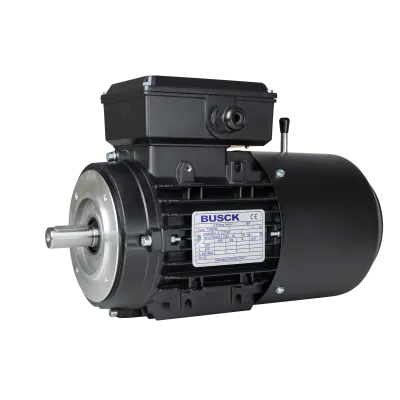

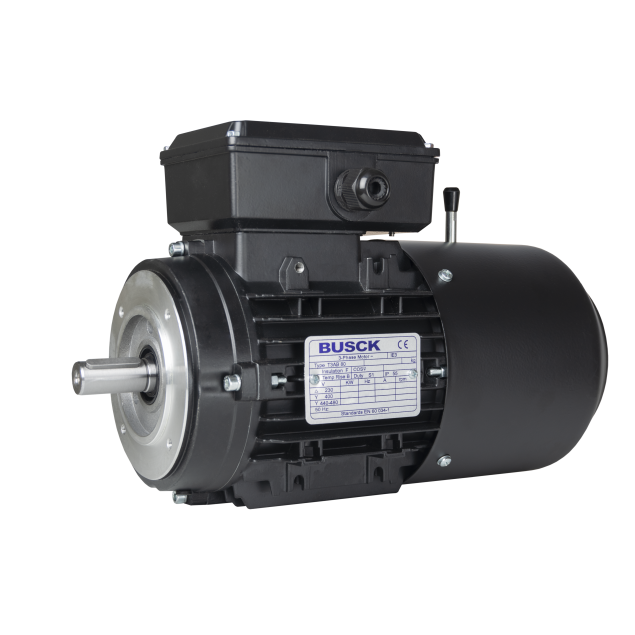

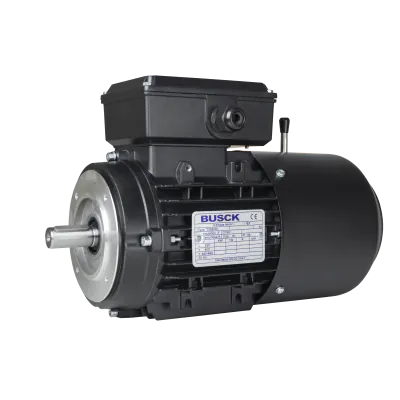

Busck AC brake motor T3AB80C-4, 1.1kW, 1430RPM, 230/400V, 50Hz, aluminium
T3AB80C-4
Specifications
Product description
Downloads
€850.00
Made to order
Expected shipment: 27-03-2025
More Information
IP classification
IP 55
Model
T3AB80C-4
Speed (RPM)
1430
Rated output (kW)
1.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4,42/2,55
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description

Key features:
- Robust build: Constructed from aluminum.
- IP55 rating: The motor boasts an IP55 rating, providing protection against dust and water ingress, making it suitable for both indoor and outdoor use.
- High power: With a power output of 1.1kW, this motor delivers performance to drive various machinery and equipment effectively.
- Efficient speed: Operating at a speed of 1430RPM, the Busck AC Motor optimizes energy usage while maintaining consistent performance.
- IE3 efficiency: The motor adheres to IE3 efficiency standards, reducing energy consumption and promoting environmental sustainability.
- B14 flange: Featuring a B14 flange, the motor's design facilitates easy installation and integration into existing systems.
Specifications:
- Temperature range: -20°C to +40°C
- Construction material: Aluminum
