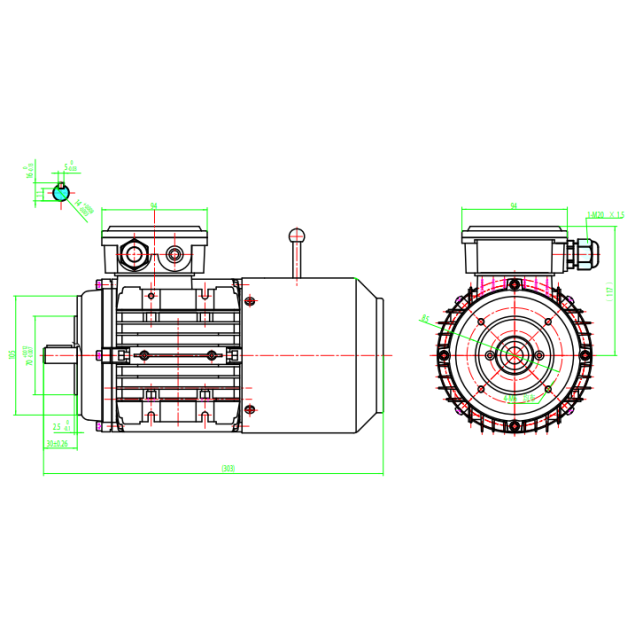

Busck AC brake motor T3AB90S-6, 0.75kW, 950RPM, 230/400V, 50Hz, aluminium
T3AB90S-6The Busck AC brake motor is a highly reliable and efficient solution designed to ensure optimal safety and quick braking in a wide range of applications. With its sturdy construction and features, this motor is a ideal choice for various industrial needs.
Specifications
Product description
Downloads
€1,144.00
Made to order
Expected shipment: 09-04-2025
More Information
IP classification
IP 55
Model
T3AB90S-6
Speed (RPM)
950
Rated output (kW)
0.75
Efficiency (% FL)
78.9
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.57/2.05
Nominal torque (Nm)
7.54
Start current ratio (IA/IN)
4.7
Mounting
B14
IEC norm
90
BCD
115
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Quick braking time: The AC brake motor is equipped with a powerful braking system that ensures rapid and reliable stopping.
- IP55 rating: The motor's IP55 rating offers protection against dust and water ingress.
- High performance: With a power rating of 0.75kW and a speed of 950RPM, this motor delivers performance for various industrial applications.
- Wide voltage range: The motor operates efficiently at both 230V and 400V, offering flexibility in power supply options.
- B14 flange: The B14 flange design ensures easy installation and compatibility with different mounting configurations.
- Brake torque: Boasting a brake torque of 16 Nm, the motor provides precise and consistent braking performance.
- Energy-efficient: The motor complies with the IE3 energy efficiency standard, promoting eco-friendliness and reducing energy consumption.
Specifications:
- Durable aluminum build: Has a robust aluminum construction.
- Extended temperature range: From -20°C to +40°C.
