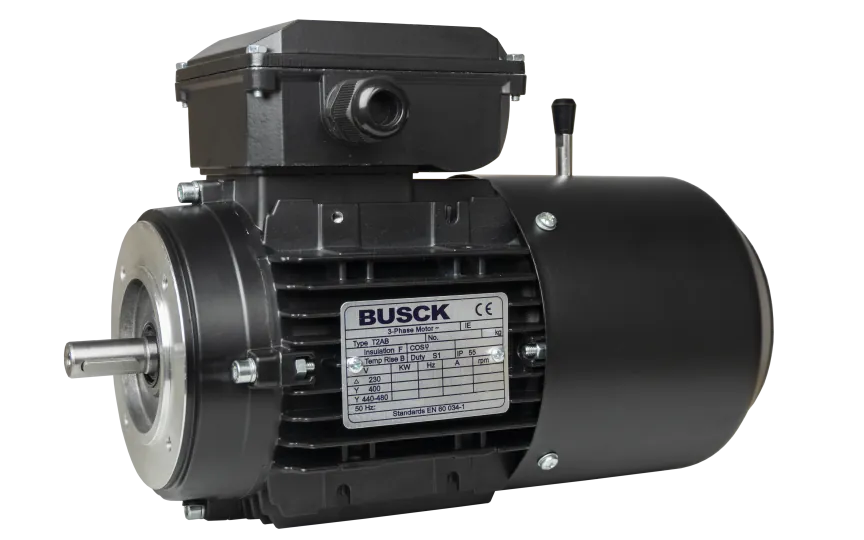

Busck AC brake motor T3AB100LA-8, 0.75kW, 710RPM, 230/400V, 50Hz, aluminium
T3AB100LA-8The Busck AC brake motor T3AB100LA-8 is a robust solution for applications requiring both reliable drive performance and integrated braking.
With a rated output of 0.75 kW and a speed of 710 RPM, this 8-pole motor delivers a nominal torque of 10.09 Nm. The integrated brake provides secure stopping and holding functionality, making it suitable for machinery where controlled motion is essential.
The motor is built with an aluminium housing and IP55 protection, ensuring durability against dust and water spray. Classified in IE3 efficiency class, it supports energy-efficient operation. The 230/400 V (Δ/Y) connection draws 3.93/2.26 A, and the B14 flange mounting with Ø28 mm shaft and 130 mm BCD ensures straightforward installation. The TEFC cooling system enhances reliability in continuous duty.
Made to order
Expected shipment:
More Information
Description
Key features:
- Brake functionality: Equipped with a powerful brake torque of 32 Nm, ensuring quick and efficient braking.
- IP55 rating: With an IP55 rating, the motor is well-protected against dust and water ingress.
- Efficient performance: The motor boasts a power output of 0.75kW and a speed of 710RPM, providing optimal performance for diverse applications.
- Voltage options: The motor operates on a versatile voltage range of 230/400V, allowing it to be utilized in various electrical systems.
- B14 flange mounting: The B14 flange allows for easy and secure installation, ensuring compatibility with a wide range of equipment.
- Energy-efficient: The motor is rated IE3, ensuring high energy efficiency and minimizing power consumption.
Specifications:
- Durable construction: The motor features a sturdy aluminum body.
- Wide temperature range: -20°C to +40°C.
