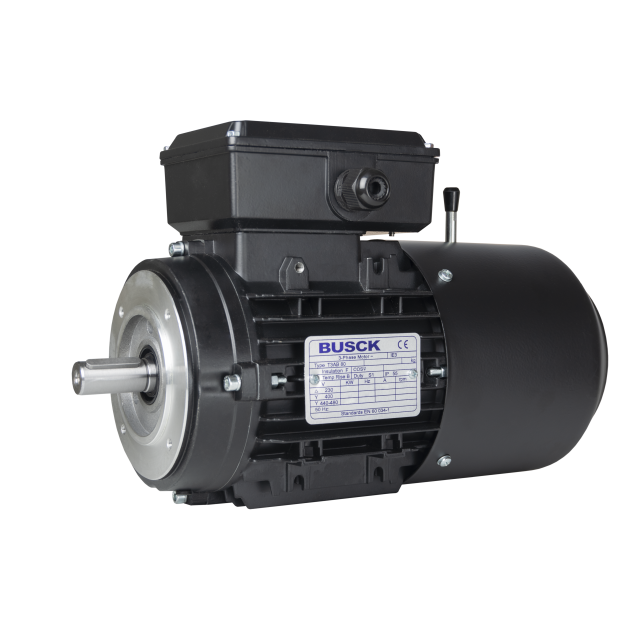

Busck AC brake motor T3AB80A-2, 0.75kW, 2890RPM, 230/400V, 50Hz, aluminium
T3AB80A-2The Busck AC brake motor offers reliability and operating safety, along with a rapid braking time, making it the ideal choice for a wide range of applications. With its high-quality construction and specifications, this motor is designed to meet your braking needs with utmost precision and efficiency.
Specifications
Product description
Downloads
€804.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 55
Model
T3AB80A-2
Speed (RPM)
2890
Rated output (kW)
0.75
Efficiency (% FL)
80.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.96/1.7
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
7.4
Mounting
B14
IEC norm
80
BCD
120
Poles
2
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- IP55 rating: The motor boasts an IP55 rating, providing protection against dust and water ingress, allowing it to operate in harsh environments.
- Powerful performance: With a power rating of 0.75kW and an speed of 2890RPM, this motor delivers optimal performance.
- Flexible voltage range: The motor can operate efficiently at both 230V and 400V, allowing for flexibility in different power supply setups.
- B14 flange: Featuring a B14 flange, the motor's mounting and integration become hassle-free.
- Brake torque: The motor offers a brake torque of 8 Nm.
- High efficiency: With an IE3 efficiency rating, this motor reduces operational costs.
Specifications:
- Aluminum construction: The motor is build with a robust aluminum build.
- Wide temperature range: -20°C to +40°C.
