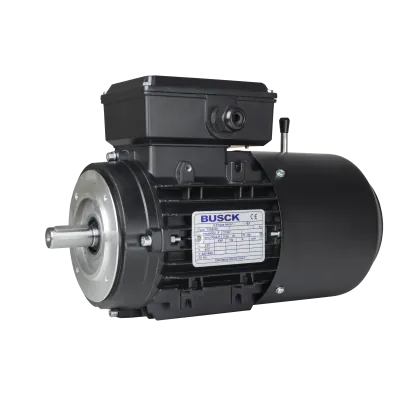

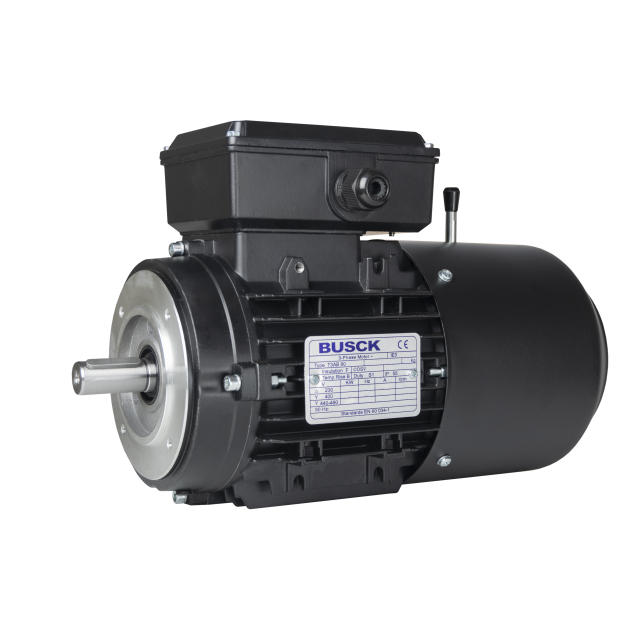

Busck AC brake motor T3AB80B-4, 0.75kW, 1430RPM, 230/400V, 50Hz, aluminium
T3AB80B-4The Busck AC brake motor is a high-performance and reliable motor designed to meet the demanding requirements of various industrial applications. With its braking capabilities and robust construction, this motor ensures enhanced safety and efficiency in your operations.
Specifications
Product description
Downloads
€863.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 55
Model
T3AB80B-4
Speed (RPM)
1430
Rated output (kW)
0.75
Efficiency (% FL)
82.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.13/1.8
Nominal torque (Nm)
5.01
Start current ratio (IA/IN)
6.1
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTO
Description
Key features:
- Quick braking time: The motor's efficient braking system guarantees rapid and precise stopping.
- IP55 rating: The motor boasts an IP55 rating, safeguarding it against dust and water ingress, making it suitable for both indoor and outdoor applications.
- High power output: With a power rating of 0.75kW, this motor provides sufficient force for various industrial tasks.
- Versatile voltage range: The motor operates on 230/400V, making it adaptable to different power supply configurations.
- B14 flange: Designed with a B14 flange, the motor ensures easy and secure installation in various setups.
- Brake torque 12 Nm: The motor's reliable brake torque of 12 Nm offers stable and controlled braking performance.
- High efficiency: The motor meets IE3 efficiency standards, ensuring energy-saving and cost-effective operation.
Specifications:
- Robust aluminum build: Constructed with durable aluminum materials.
- Wide temperature range: -20°C to +40°C.
