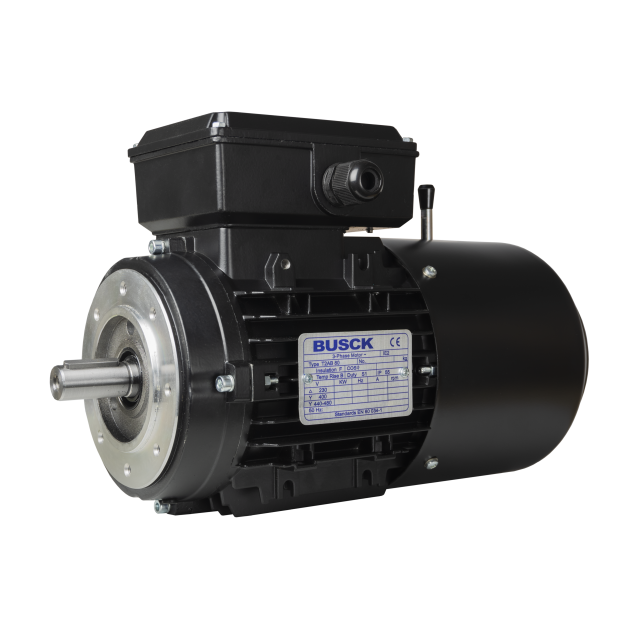

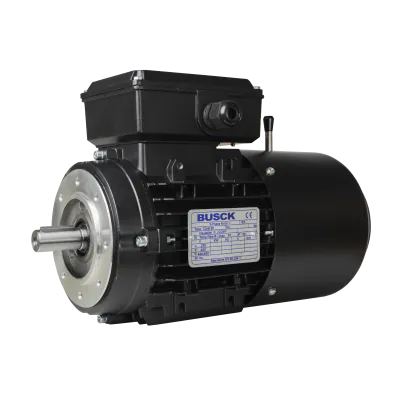

Busck AC brake motor T2AB80B-6, 0.55kW, 935RPM, 230/400V, 50Hz, aluminium
T2AB80B-6The Busck AC brake motor is motor designed to deliver braking performance, ensuring safety and efficiency in a wide range of applications. With its robust construction and features, this motor is the ideal choice for various industries.
Specifications
Product description
Downloads
€913.26
In stock
Expected shipment: 02-11-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T2AB80B-6
Speed (RPM)
935
Rated output (kW)
0.55
Efficiency (% FL)
73.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.78/1.6
Nominal torque (Nm)
2
Start current ratio (IA/IN)
4
Mounting
B14
IEC norm
80
BCD
100
Poles
6
Efficiency standard
IE2
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
None
Description
Key features:
- Quick braking time: The Busck AC brake motor boasts a quick braking time, enhancing safety and preventing accidents in critical situations.
- IP55 rating: The IP55 rating ensures that the motor is dust-tight and protected against water jets.
- Powerful performance: With a power rating of 0.55kW and operating at 935RPM, this motor delivers efficient and consistent power output for various industrial tasks.
- Dual voltage capability: The motor operates seamlessly at 230V or 400V, providing flexibility in different power supply environments.
- B14 flange mounting: The B14 flange design enables easy installation and integration into existing systems, saving time and effort.
- Brake torque: Featuring a strong brake torque of 12 Nm, the motor guarantees precise and secure braking even under heavy loads.
- High-efficiency class: Complying with IE3 efficiency standards, this motor helps reduce energy consumption.
Specifications:
- High reliability: Built from aluminum.
- Wide temperature range: -20°C to +40°C.
