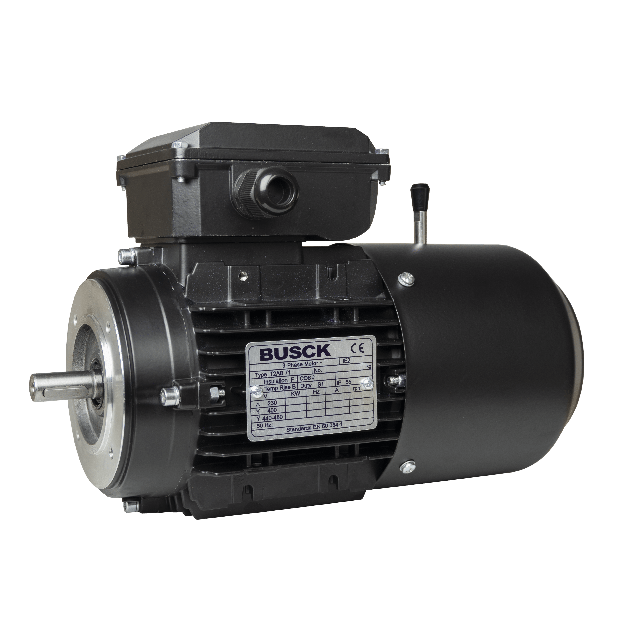

Busck AC brake motor T2AB71B-2, 0.55kW, 2840RPM, 230/400V, 50Hz, aluminium
T2AB71B-2The Busck AC brake motor is a motor designed to deliver reliability, operational safety, and rapid braking time, making it ideal for a wide range of applications. With its features and robust build, this motor ensures smooth and efficient performance in demanding industrial environments.
Specifications
Product description
Downloads
€714.21
In stock
Expected shipment: 22-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T2AB71B-2
Speed (RPM)
2840
Rated output (kW)
0.55
Efficiency (% FL)
74.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.3/1.32
Nominal torque (Nm)
2.3
Start current ratio (IA/IN)
5.7
Mounting
B14
IEC norm
71
BCD
85
Poles
2
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
Thermal protection
None
Description
Key features:
- IP55 rating: The IP55 rating provides protection against dust and water ingress.
- Powerful performance: With a power rating of 0.55kW and a speed of 2840RPM, this motor delivers consistent and efficient performance.
- Voltage flexibility: The motor supports dual voltage options of 230V and 400V.
- B14 flange: The B14 flange design simplifies installation, making it easy to mount the motor securely in your application.
- Brake torque 4 Nm: The integrated brake with 4 Nm torque provides reliable and precise braking, adding an extra layer of safety to your operations.
- High efficiency: The motor is rated as IE2.
Specifications:
- Aluminum build: The motor has a sturdy aluminum construction.
- Wide temperature range: Of -20°C to +40°C.
