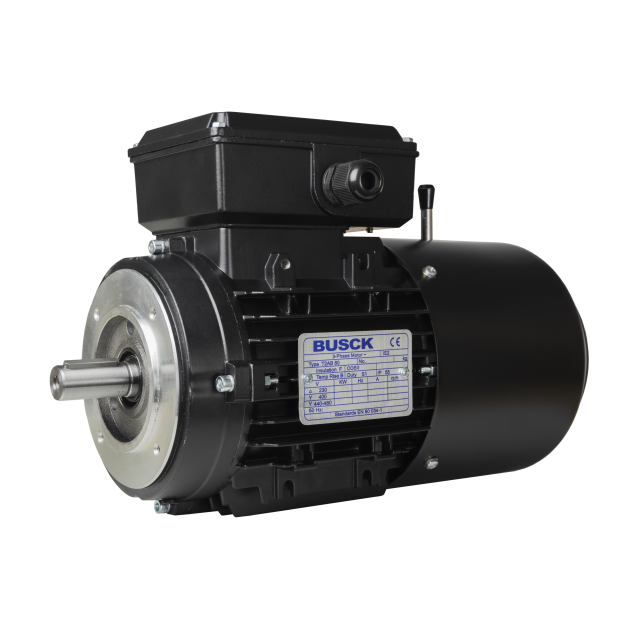

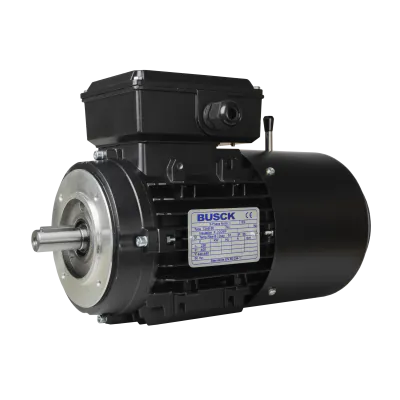

Busck AC brake motor T2AB80A-4, 0.55kW, 1420RPM, 230/400V, 50Hz, aluminium

T2AB80A-4

The Busck AC Brake Motor T2AB80A-4 is a three-phase electric motor designed for industrial applications. It features a rated output of 0.55 kW and a rated speed of 1400 RPM, with a maximum speed of 1420 RPM. Built in accordance with the IEC 80 frame size standard and certified to IE2 efficiency class, the motor offers reliable performance and energy efficiency. Constructed from aluminium with TEFC (Totally Enclosed Fan Cooled) cooling, it ensures both durability and thermal stability. Additional specifications include a shaft diameter of Ø19 mm, B14 mounting flange, 4 poles, voltage connection of 230/400V, and IP65 protection class. The motor has a bolt circle diameter of 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 65

Model

T2AB80A-4

Speed (RPM)

1420

Rated output (kW)

0.55

Efficiency (% FL)

77.1

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.56/1.47

Nominal torque (Nm)

3.7

Start current ratio (IA/IN)

5.4

Mounting

B14

BCD

100

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress.
Powerful performance: The motor has a power rating of 0.55kW.
High speed: Operating at 1420RPM, the motor offers efficient and consistent performance for smooth operation.
Voltage compatibility: The motor supports both 230V and 400V voltage options, offering flexibility in different power supply setups.
B14 flange mounting: Designed with a B14 flange, the motor ensures easy and secure mounting.
Brake torque: The motor's brake torque of 8 Nm enables quick and precise braking, enhancing safety.
IE3 efficiency: With high-efficiency rating IE3, the motor reduces energy consumption and operational costs.
