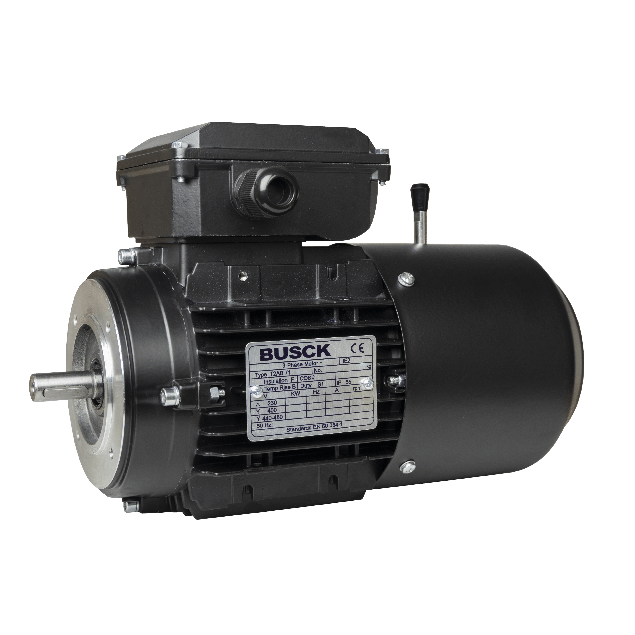

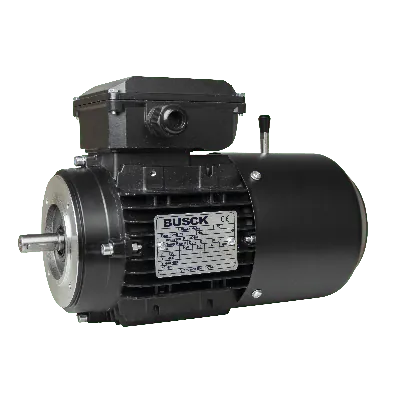

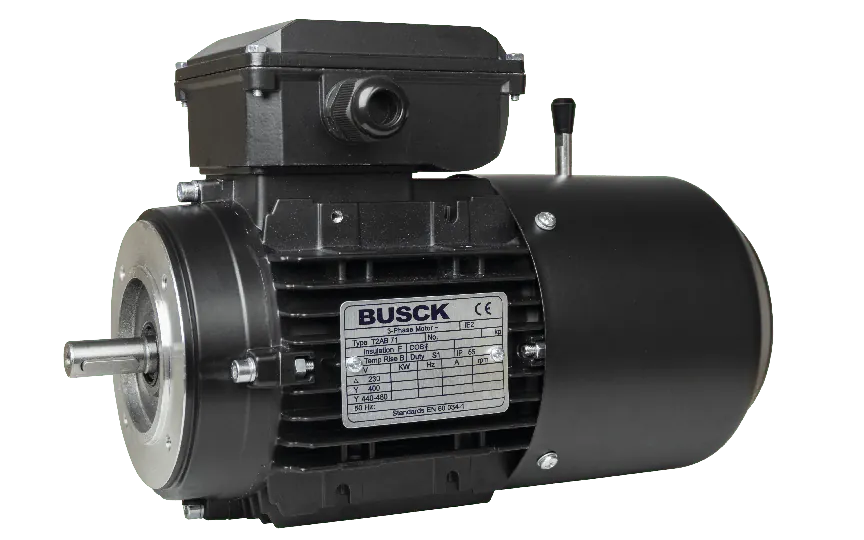

Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, making it suitable for both indoor and outdoor applications.
- Powerful performance: The motor boasts a power output of 0.55kW and runs at 1395RPM.
- Versatile voltage range: It operates on a wide voltage range of 230/400V, ensuring compatibility with various power sources.
- B14 flange: The B14 flange design allows for easy and secure mounting in diverse industrial setups.
- Efficient brake system: Equipped with a strong brake torque of 6 Nm, the motor ensures swift and reliable braking.
- High energy efficiency: Compliant with IE3 efficiency standards, the motor helps reduce energy consumption and operating costs.
Specifications:
- High quality aluminum build: The motor's aluminum construction ensures durability.
- Wide temperature range: -20°C to +40°C.
Specifications
IP classification
IP 55
Model
T2AB71C-4
Speed (RPM)
1395
Rated output (kW)
0.55
Efficiency (% FL)
77.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.45/1.41
Nominal torque (Nm)
3.77
Start current ratio (IA/IN)
4.9
Mounting
B14
BCD
85
Poles
4
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
Downloads
Foreign trade
HS-Code
85015100
ERP net weight (Kg)
8.00
Country of origin
CHN
