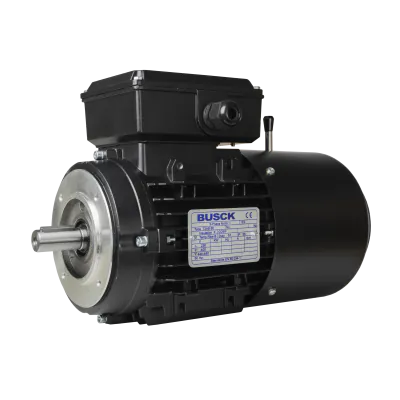

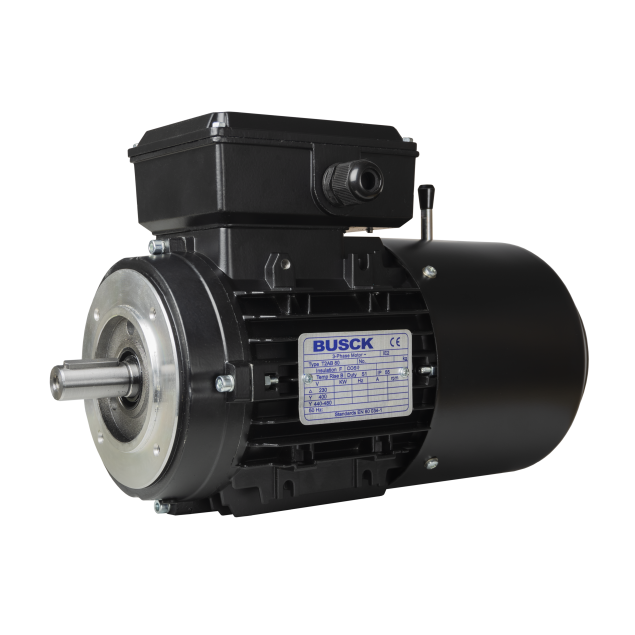

Busck AC brake motor T2AB80A-6, 0.37kW, 935RPM, 230/400V, 50Hz, aluminium
T2AB80A-6The Busck AC brake motor is a motor designed to provide reliability, operating safety, and quick braking time. With its robust construction and features, this motor is perfect for a wide range of applications.
Specifications
Product description
Downloads
€739.54
In stock
Expected shipment: 06-02-2025
More Information
IP classification
IP 55
Model
T2AB80A-6
Speed (RPM)
935
Rated output (kW)
0.37
Efficiency (% FL)
67.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.09/1.20
Nominal torque (Nm)
1.9
Start current ratio (IA/IN)
3.8
Mounting
B14
IEC norm
80
BCD
100
Poles
6
Efficiency standard
IE2
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
None
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is highly protected against dust and water ingress, making it suitable for both indoor and outdoor use.
- Powerful performance: The motor boasts a 0.37kW power output, capable of delivering an 935RPM.
- Versatile voltage: The motor supports a voltage range of 230/400V, offering flexibility in different power supply configurations.
- B14 flange mounting: Designed with a B14 flange, the motor can be easily installed in various setups.
- Efficient braking: Equipped with a strong brake torque of 8 Nm, the motor ensures precise and reliable braking, enhancing safety during operation.
- Energy-efficient: With an IE2 efficiency rating, the motor minimizes energy consumption.
Specifications:
- High-quality build: The motor features a durable aluminum construction.
- Wide temperature range: From -20°C to +40°C.
