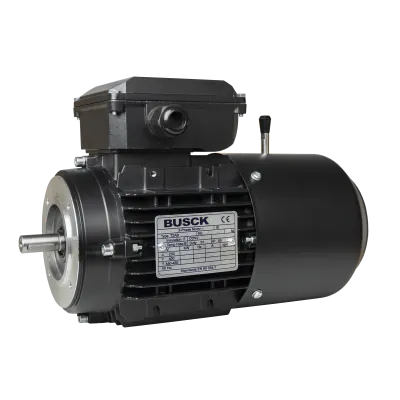

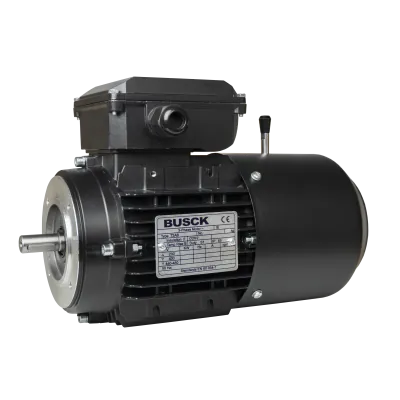

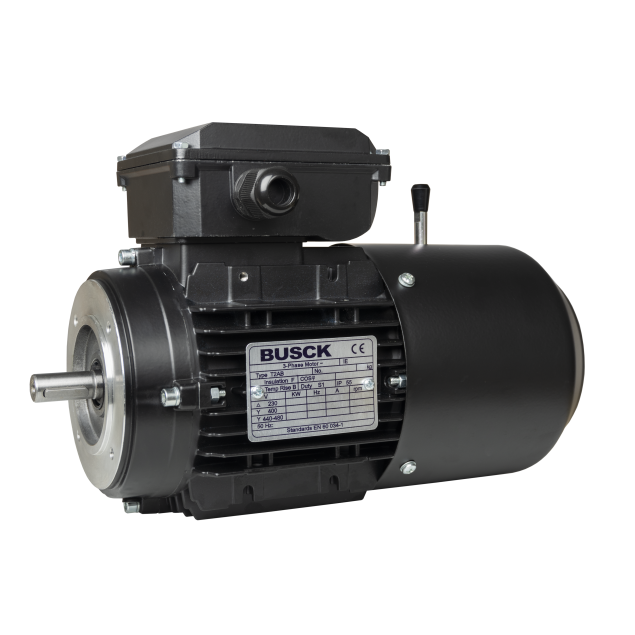

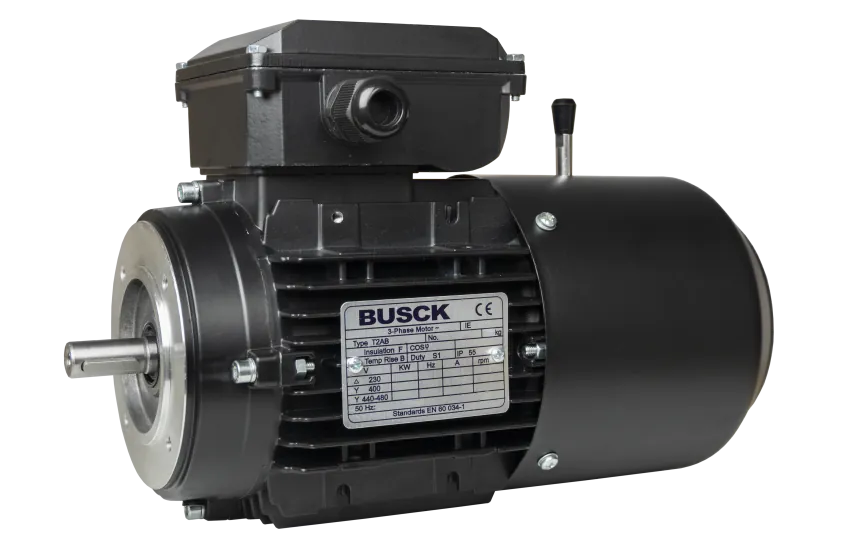

Busck AC brake motor T3AB71B-4, 0.37kW, 1420RPM, 230/400V, 50Hz, aluminium

T3AB71B-4
The Busck AC Brake Motor T3AB71B-4 is a robust electric motor designed for demanding industrial applications. It delivers a rated output of 0.37 kW and operates at a speed of 1420 RPM. The motor is compliant with the IE3 efficiency standard and built to the IEC 71 norm. With a B14 mounting configuration and a shaft diameter of Ø14 mm, it ensures compatibility with a wide range of machinery. The motor features TEFC cooling, an IP55 enclosure, and a durable aluminium housing. Electrical connection is designed for 230/400 V at 50 Hz. It has 4 poles and a bolt circle diameter (BCD) of 85 mm.
€786.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • IP55 rating provides protection against dust and water
  • 0.37kW power output for efficient performance
  • Operates at 1420RPM for optimal speed control
  • Dual voltage rating of 230/400V for flexibility in power supply
  • B14 flange design ensures easy installation
  • Impressive brake torque of 6 Nm for reliable braking capabilities
  • IE3 efficiency rating for energy-saving operation

Specifications:

  • Robust aluminum construction for enhanced durability
  • Wide temperature range from -20°C to +40°C.

Specifications

IP classification
IP 55
Model
T3AB71B-4
Speed (RPM)
1420
Rated output (kW)
0.37
Efficiency (% FL)
77.3
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.77/1.02
Nominal torque (Nm)
2.49
Start current ratio (IA/IN)
5.2
Mounting
B14
BCD
85
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TEFC
Thermal protection
PTO

Downloads

3dfile 3dfile step dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
8.00
Country of origin
CHN
