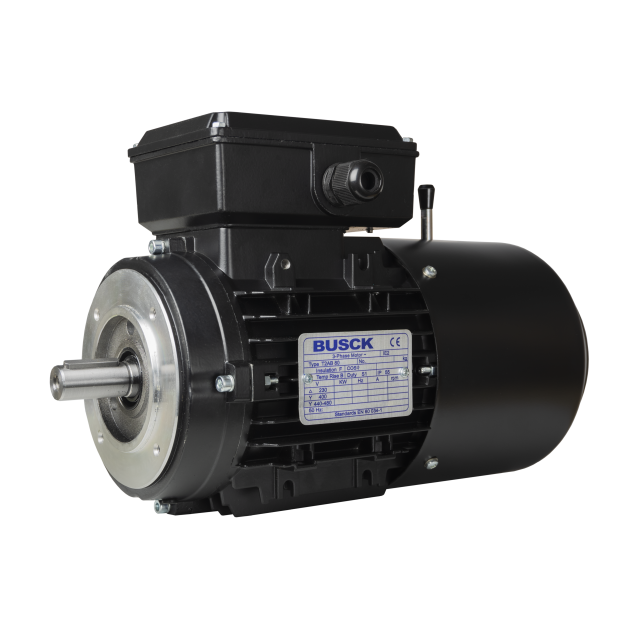

Busck AC brake motor T2AB80B-8, 0.25kW, 700RPM, 230/400V, 50Hz, aluminium

T2AB80B-8

The Busck AC Brake Motor T2AB80B-8 is a robust electric motor designed for reliable performance in industrial applications. It features a rated output of 0.25 kW and a rated speed of 700 RPM, driven by 8 poles. The motor is built with a shaft diameter of Ø19 mm and conforms to the IEC 80 norm, making it suitable for B14 mounting. It has a voltage connection of 230/400 V and complies with the IE2 efficiency standard. Constructed from aluminium and equipped with Totally Enclosed Fan Cooled (TEFC) design and IP55 protection, it ensures both durability and optimal cooling in harsh environments. The motor’s Bolt Circle Diameter (BCD) is 100 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2AB80B-8

Speed (RPM)

700

Rated output (kW)

0.25

Efficiency (% FL)

66.9

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.58/0.91

Nominal torque (Nm)

Start current ratio (IA/IN)

3.5

Mounting

B14

BCD

100

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

Quick braking time: The motor's integrated brake system ensures swift and precise braking, enhancing safety and efficiency in various operations.
IP55 rating: With an IP55 rating, the motor is dust-tight and protected against water jets, making it suitable for both indoor and outdoor use.
B14 flange: The B14 flange design allows for easy and flexible mounting, ensuring seamless integration into different systems.
IE2 efficiency: The motor boasts high energy efficiency, reducing energy consumption and contributing to cost savings.

Specifications:
