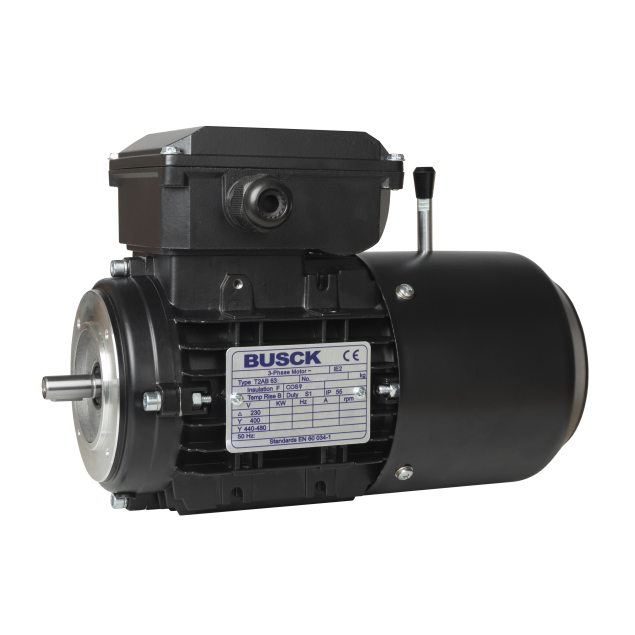

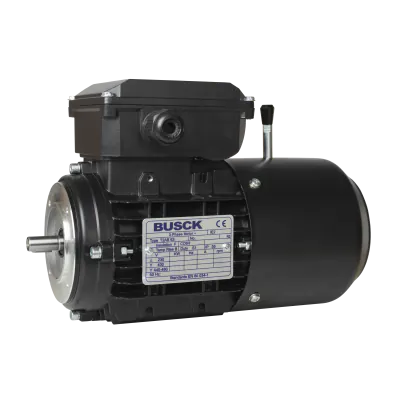

Busck AC brake motor T2AB63B-2, 0.25kW, 2840RPM, 230/400V, 50Hz, aluminium

T2AB63B-2

The Busck AC Brake Motor T2AB63B-2 is a compact and reliable electric motor designed for industrial applications. It features a rated output of 0.25 kW and operates at a speed of 2840 RPM. Built in accordance with the IEC 63 standard, it has a 2-pole configuration and supports a voltage connection of 230/400V at 50Hz. The motor housing is made of aluminium for reduced weight and effective heat dissipation. It includes a TEFC cooling system and has an IP55 classification for protection against dust and water. Additional specifications include a B14 mounting type, shaft diameter of Ø11 mm, IEC efficiency class IE2, and a bolt circle diameter (BCD) of 75 mm.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Model

T2AB63B-2

Speed (RPM)

2840

Rated output (kW)

0.25

Efficiency (% FL)

69.8

Voltage connection (Δ/Y)

230/400

Rated current at voltage

1.15/0.66

Nominal torque (Nm)

2.5

Start current ratio (IA/IN)

5.2

Mounting

B14

BCD

Poles

Efficiency standard

IE2

Shaft diameter (mm)

Ø11

Cooling

TEFC

HS-Code

85015100.000000

Description

Key features:

IP55 rating: With an IP55 rating, the motor is resistant to dust and water ingress, ensuring reliable performance in challenging environments.
Powerful performance: The motor delivers a robust power output of 0.25kW, making it suitable for demanding tasks.
High speed: Operating at 2840RPM, this motor ensures swift and efficient operation in various applications.
Voltage flexibility: The motor supports a voltage range of 230/400V, providing versatility in power supply options.
B14 flange: Featuring a B14 flange, the motor's mounting is convenient and allows for easy integration into different setups.
Brake torque: The motor's integrated brake delivers a strong 4 Nm of braking torque.
IE2 efficiency: This motor complies with the IE2 efficiency class, ensuring energy-saving and environmentally friendly performance.

Specifications:
