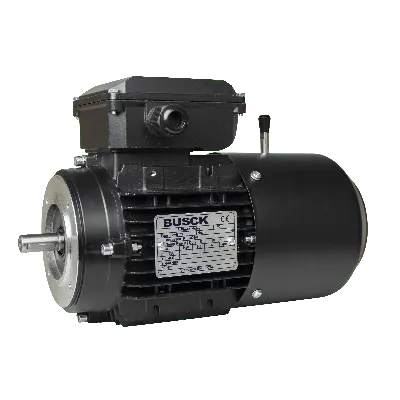

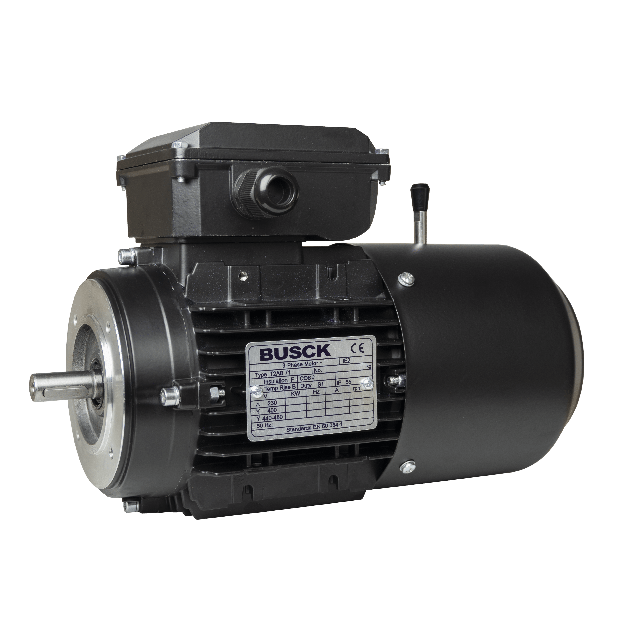

Busck AC brake motor T2AB71A-4, 0.25kW, 1400RPM, 230/400V, 50Hz, aluminium
T2AB71A-4The Busck AC brake motor is a reliable and safety-focused motor designed for various applications, offering quick braking times and performance. With its robust construction and features, this motor series is the ideal choice for a wide range of industrial settings.
Specifications
Product description
Downloads
€721.00
Made to order
Expected shipment: 02-04-2025
More Information
IP classification
IP 55
Model
T2AB71A-4
Speed (RPM)
1400
Rated output (kW)
0.25
Efficiency (% FL)
69.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.34/0.77
Nominal torque (Nm)
2.2
Start current ratio (IA/IN)
4.1
Mounting
B14
IEC norm
71
BCD
85
Poles
4
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
Thermal protection
None
Description
Key features:
- Quick braking time: The AC Brake Motor ensures rapid and precise braking, enhancing operational safety and preventing accidents.
- IP55 rating: With an IP55 rating, the motor is dust and water-resistant, making it suitable for challenging environments.
- High efficiency: The IE2 efficiency rating guarantees reduced energy consumption and minimized operating costs.
- Versatile flange design: The B14 flange design enables easy mounting and integration into different industrial setups.
- Brake torque: The motor features a powerful 4 Nm brake torque.
- Voltage compatibility: The motor is designed to work efficiently with a voltage range of 230/400V.
Specifications:
- Durable aluminum build: The motor's aluminum construction provides strength.
- Wide temperature range: From -20°C to +40°C.
