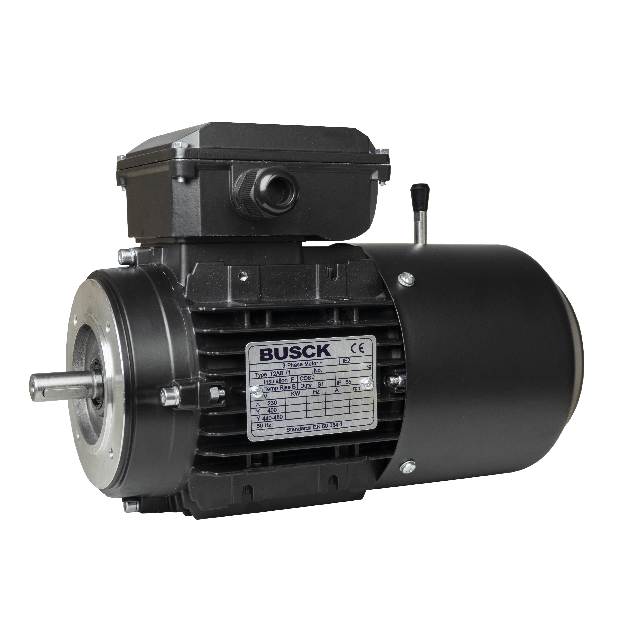

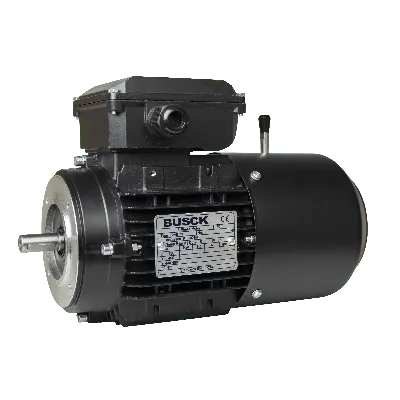

Busck AC brake motor T2AB71A-6, 0.18kW, 850RPM, 230/400V, 50Hz, aluminium
T2AB71A-6The Busck AC Brake Motor T2AB71A-6 is a compact and reliable electric motor designed for industrial applications. This model features a rated output of 0.18 kW and a rated speed of 900 RPM, with a typical operational speed of 850 RPM. Built with a TEFC cooling system and housed in aluminium, it offers direct mounting via a B14 flange. The motor complies with the IE2 efficiency standard and follows the IEC 71 norm. It includes an IP55 protection rating for resistance against dust and water. Additional specifications include a shaft diameter of Ø14 mm, 6 poles, and a dual voltage connection of 230/400 V. The bolt circle diameter (BCD) is 85 mm.
Specifications
Product description
Downloads
€668.00
Made to order
Expected shipment:
Loading...
More Information
IP classification
IP 55
Model
T2AB71A-6
Speed (RPM)
850
Rated output (kW)
0.18
Efficiency (% FL)
56.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.2/0.69
Nominal torque (Nm)
2.02
Start current ratio (IA/IN)
3.1
Mounting
B14
BCD
85
Poles
6
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
HS-Code
85015100.000000
Description
Key features:
- IP55 rating: With an IP55 rating, the motor is protected against dust and water ingress, ensuring reliable operation even in challenging environments.
- High power output: Boasting a 0.18kW power rating, this motor delivers efficient performance in various industrial scenarios.
- Optimal speed control: The motor offers a steady 850RPM speed, allowing precise control over its operation.
- Versatile voltage range: With a voltage rating of 230/400V, this motor can be seamlessly integrated into different electrical systems.
- B14 flange: The B14 flange design ensures easy and secure mounting, enabling quick installation.
- Quick braking time: Thanks to the impressive 4 Nm brake torque, the motor provides rapid and reliable braking for enhanced safety.
- Energy efficiency: The motor boasts an IE2-56.6 efficiency rating, contributing to reduced energy consumption and operating costs.
Specifications:
- Robust construction: The motor features a sturdy aluminum housing, providing excellent durability and resistance to wear and tear.
- Wide temperature range: Operating flawlessly within a temperature range of -20°C to +40°C, the motor can withstand varying environmental conditions.
