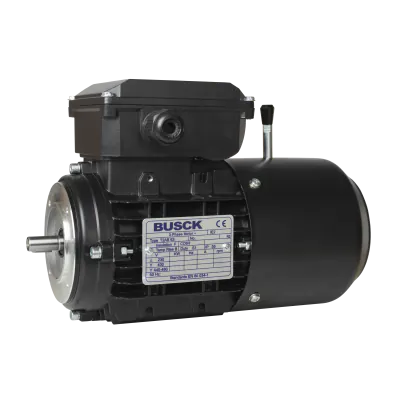

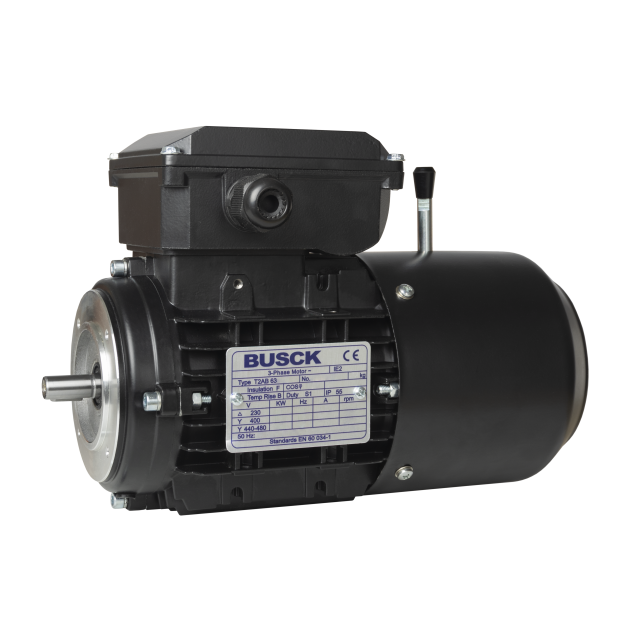

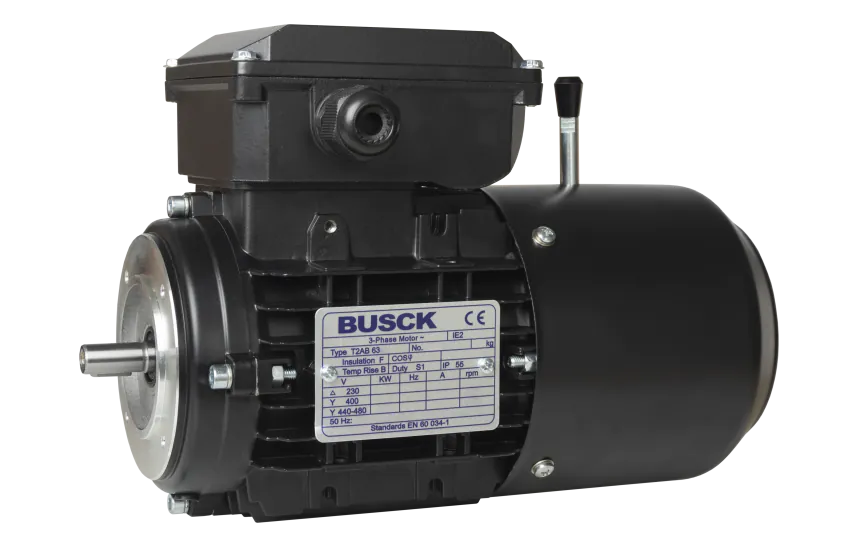

Busck AC brake motor T2AB63B-6, 0.12kW, 850RPM, 230/400V, 50Hz, aluminium
T2AB63B-6The Busck AC brake motor is a highly reliable and safe motor with a quick braking time, making it an ideal choice for a wide range of applications. Its sturdy build and specifications ensure optimal performance and efficiency in various industrial settings.
Specifications
Product description
Downloads
€654.07
In stock
Expected shipment: 27-12-2024
More Information
IP classification
IP 55
Producer
Busck
Model
T2AB63B-6
Speed (RPM)
850
Rated output (kW)
0.12
Efficiency (% FL)
50.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.89/0.51
Nominal torque (Nm)
1.8
Start current ratio (IA/IN)
2.7
Mounting
B14
IEC norm
63
BCD
75
Poles
6
Efficiency standard
IE2
Shaft diameter (mm)
Ø11
Cooling
TEFC
Thermal protection
None
Description
Key features:
- IP55 rating: The IP55 rating provides protection against dust and water, making the motor suitable for both indoor and outdoor use.
- Powerful performance: With a power rating of 0.12kW and a maximum speed of 850RPM, this motor delivers performance in demanding tasks.
- Wide voltage range: The motor can operate efficiently at both 230V and 400V, providing flexibility in different power supply environments.
- B14 flange: The B14 flange design allows for easy installation and integration into various systems.
- Brake torque: The motor's 4 Nm brake torque ensures rapid and reliable braking, enhancing safety during operation.
- High efficiency: Rated as IE2, the motor meets stringent energy efficiency standards.
Specifications:
- Robust construction: The motor is constructed with aluminum materials.
- Temperature resilient: -20°C to +40°C.
