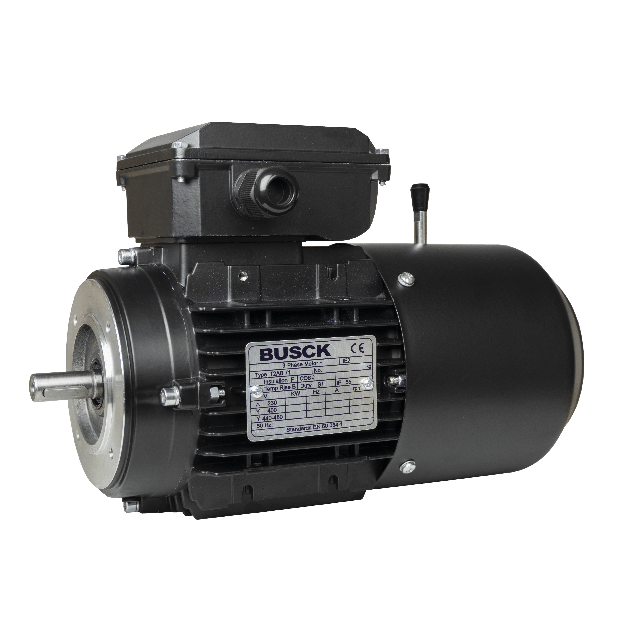

Busck AC brake motor T2AB71B-8, 0.12kW, 685RPM, 230/400V, 50Hz, aluminium
T2AB71B-8The Busck AC brake motor is a high-performance motor designed for reliability, operating safety, and rapid braking. Its robust construction and advanced features make it a perfect choice for a wide range of applications.
Specifications
Product description
Downloads
€763.67
In stock
Expected shipment: 24-01-2025
More Information
IP classification
IP 55
Producer
Busck
Model
T2AB71B-8
Speed (RPM)
685
Rated output (kW)
0.12
Efficiency (% FL)
52.1
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.94/0.54
Nominal torque (Nm)
1.8
Start current ratio (IA/IN)
2.6
Mounting
B14
IEC norm
71
BCD
85
Poles
8
Efficiency standard
IE2
Shaft diameter (mm)
Ø14
Cooling
TEFC
Thermal protection
None
Description
Key features:
- Quick braking time: The AC brake motor boasts an braking time, ensuring enhanced safety and control during operation.
- IP55 rating: The motor is designed with an IP55 rating, providing protection against dust and water ingress, making it suitable for both indoor and outdoor use.
- B14 flange: The B14 flange design allows for easy and flexible installation in various setups.
- High brake torque: With a brake torque of 7 Nm, this motor offers powerful and responsive braking capability, contributing to enhanced safety measures.
- Efficient operation: The IE2 efficiency rating ensures optimal energy utilization, leading to cost savings and reduced environmental impact.
- Voltage compatibility: The motor can be operated at 230V or 400V, providing versatility for different power supply configurations.
Specifications:
- Rugged aluminum construction: Built with durable aluminum materials.
- Wide temperature range: -20°C to +40°C.
