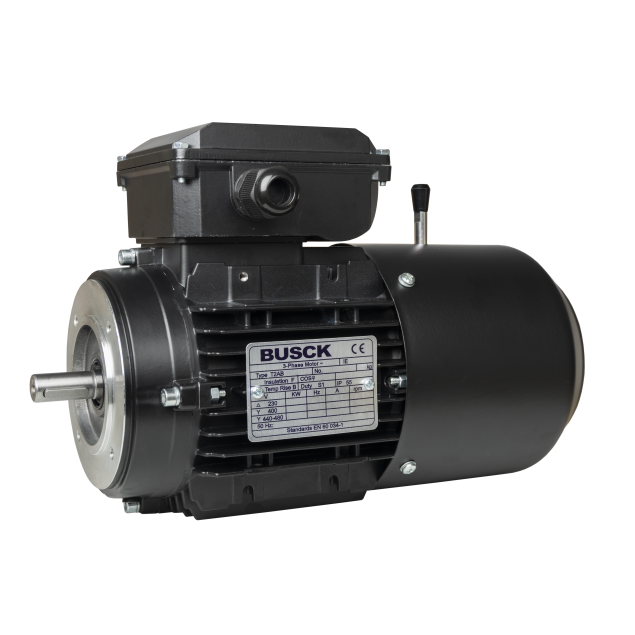

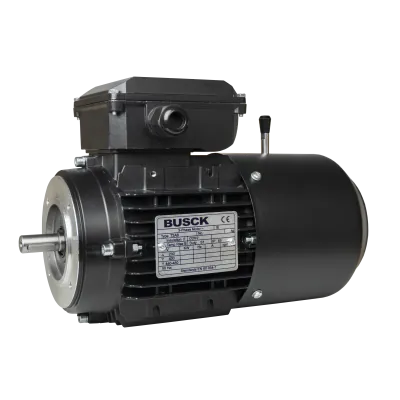

Description
Key features:
- IP55 rating: With an IP55 rating, the motor is effectively protected against dust and water, enhancing its longevity and performance.
- 0.55kW power output: The motor boasts a powerful 0.55kW power output, delivering performance to meet demanding requirements.
- 705RPM speed: Operating at 705RPM, this motor provides consistent and efficient rotational speed for various applications.
- 230/400V voltage: The motor operates at a versatile voltage range of 230/400V.
- B14 flange: Featuring a B14 flange, the motor's mounting is secure and straightforward.
- Brake torque 16Nm: The motor's substantial brake torque of 16Nm guarantees quick and reliable stopping.
- IE2 efficiency class: With an IE2 efficiency class, this motor demonstrates high energy efficiency, reducing operational costs and environmental impact.
Specifications:
- Aluminum construction: The motor has a aluminum build.
- Temperature range: -20°C to +40°C.
Specifications
IP classification
IP 55
Model
T2AB90L-8
Speed (RPM)
705
Rated output (kW)
0.55
Efficiency (% FL)
65
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.67/2.11
Nominal torque (Nm)
7.45
Start current ratio (IA/IN)
3.4
Mounting
B14
BCD
115
Poles
8
Efficiency standard
IE2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Country of origin
CHN
HS-Code
85015100.000000
ERP net weight (Kg)
17.300000
Foreign trade
HS-Code
85015100
ERP net weight (Kg)
17.30
Country of origin
CHN
