Key features:

• Easy mounting: The BK2 bellows coupling is designed for easy installation, saving you time and effort.
• Lightweight and low moment of inertia: The coupling is lightweight, ensuring minimal additional load on your system, and its low moment of inertia allows for quick and precise movements.

Specifications:

• Temperature range: The BK2 Size 150 Economy Bellows Coupling with Clamping Hub can withstand temperatures ranging from -30 °C to +100 °C (-22 °F to +212 °F), making it suitable for various industrial applications.

Design and Materials:

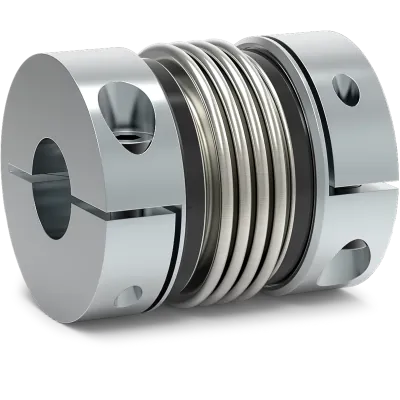

• Concentric mounting: The coupling features two clamping hubs that are concentrically mounted to a flexible bellows, providing excellent alignment and torque transmission.
• Overload tolerance: The BK2 Size 150 Economy Bellows Coupling with Clamping Hub can handle brief overloads of up to 1.5 times the rated torque, ensuring durability and reliability in demanding operating conditions.
• High-grade stainless steel bellows: The flexible bellows are constructed from high-grade stainless steel, offering exceptional resistance to corrosion and ensuring a long service life.
• Robust steel hubs: The clamping hubs are made from sturdy steel, providing strength and stability to the coupling.

Bore specifications:

• Bore D1: Ø24mm H7
• Bore D2: Ø24mm H7
