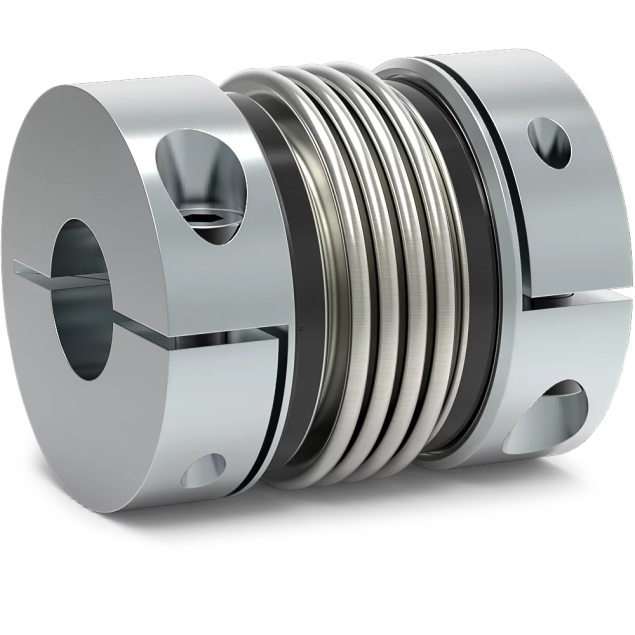

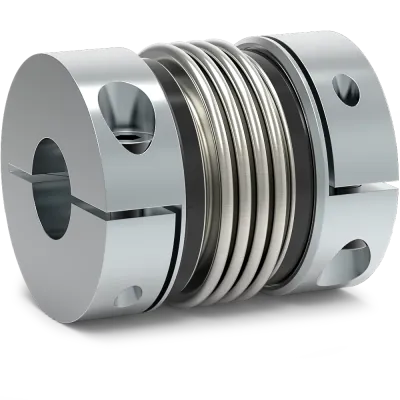

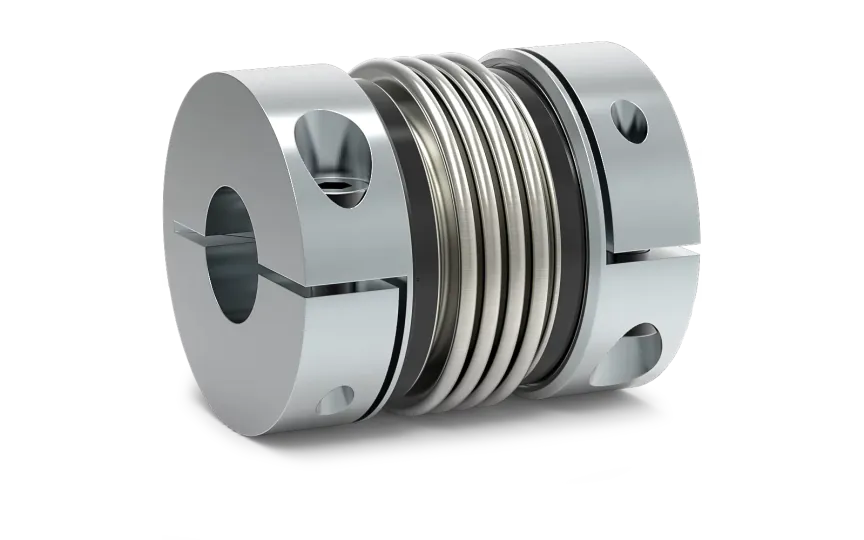

BKL 10 16 18 bellow coupling, stainless steel and aluminium
HV3020011100The BKL size 10 bellows coupling with clamping hub is a versatile and reliable coupling designed to meet the needs of various applications. With its features and durable construction, it provides seamless power transmission while maintaining precision and efficiency.
Specifications
Product description
Downloads
€79.36
In stock
Expected shipment: 05-11-2024
More Information
Material
Stainless steel and aluminium
Length (mm)
44
Max. moment (Nm)
10
Coupling size
10
Bore D1
Ø16mm H7
Bore D2
Ø18mm H7
Product type
Bellow coupling
Description
Key features:
- Easy mounting: The coupling is designed for easy installation, saving time and effort during assembly.
- Lightweight: Its lightweight construction reduces the overall weight of the system, enhancing performance and efficiency.
- Low moment of inertia: The low moment of inertia ensures quick and responsive power transfer, enabling fast acceleration and deceleration.
Specifications:
- Temperature Range: The BKL coupling can operate in temperatures ranging from -30 °C to +100 °C (-22 °F to +212 °F), making it suitable for a wide range of environments and applications.
Design and materials
- The BKL coupling features a robust design with precision-engineered clamping hubs and a flexible bellows.
- The stainless steel bellows provide flexibility, allowing for angular, axial, and parallel misalignments while maintaining efficient torque transmission.
- The steel hubs ensure durability and secure connection with the mating shafts.
Bore specifications:
- Bore D1: Ø16mm H7
- Bore D2: Ø18mm H7
Downloads
BK+MK installation and operating instructions
BK+MK installation and operating instructions.pdf
Download file
